PSR4-R23:S45
SKU DOR6752999
Primary Use:

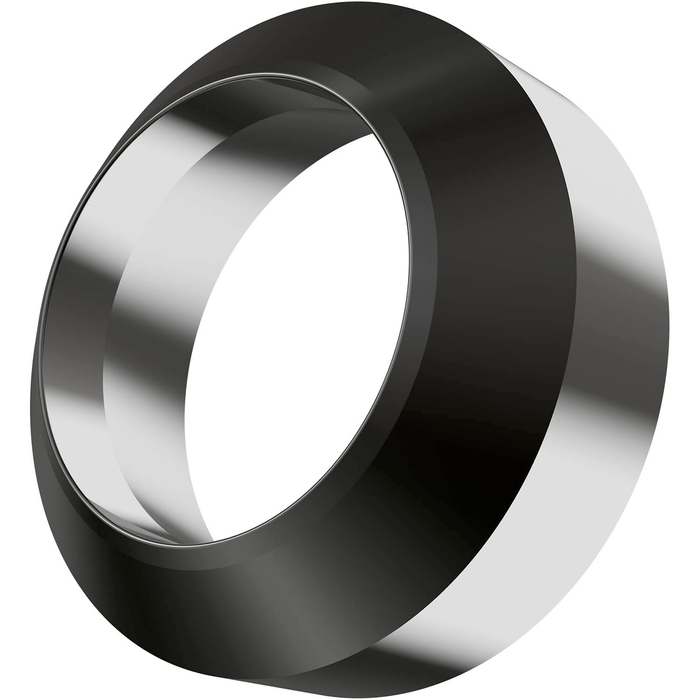

Scarfing ring with an outside diameter of 30mm, an inside diameter of 20mm, 12mm thick and a working radius of 22.8mm for tube diameters from 48 to 72mm, S45 uncoated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for deburring the inside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$58.21
-
Original price
$58.21
Original price
$58.21
$58.21
-
$58.21
Current price
$58.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

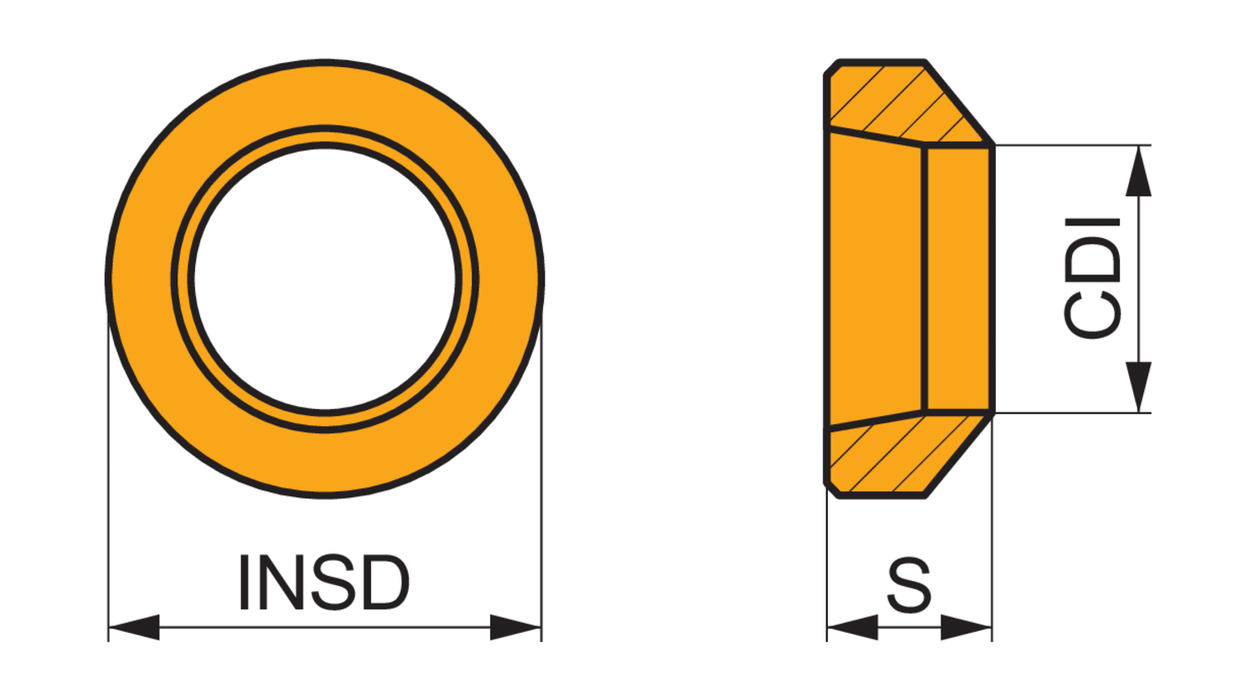

Insert Design: PSR
Insert Shape Code: P - pentagonal
Insert Thickness: 0.472
Inscribed Circle Diameter: 1.181
Chip Breaker: No chipbreaker
Grade: S45
EDP: 6752999
EAN: 3603602883650
MFG Part Number: 6752999
