LNMX 191940SN-RM:T9310

LNMX 191940SN-RM:T9310

SKU DOR6753305
by Dormer Pramet
Primary Use: Possible Use:

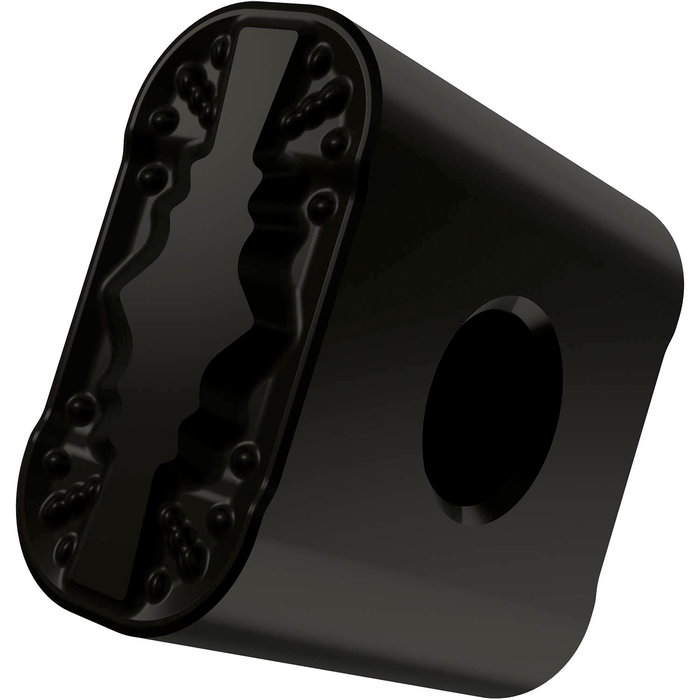

Special design negative turning insert, rectangular with a main edge length of 19.05mm, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges with facet, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01-P15, for medium to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$49.93 - $49.93
$49.93
$49.93 - $49.93
$49.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.197

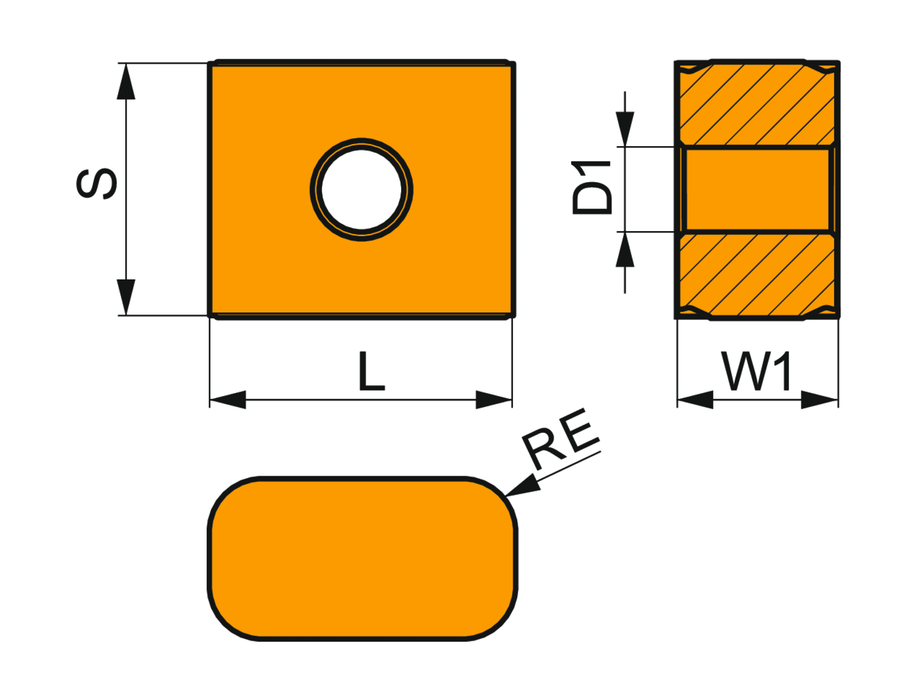

Insert Design: LN.X 19, LN.X 30

Insert Shape Code: L - rectangular

Insert Thickness: 0.75

Chip Breaker: RM

Grade: T9310

Corner Radius - in: 0.157

Corner Radius - mm: 4

EDP: 6753305

EAN: 3603602886712

MFG Part Number: 6753305
