LNMX 301940SN-RF:T9315

LNMX 301940SN-RF:T9315

SKU DOR6753309
by Dormer Pramet
Primary Use: Possible Use:

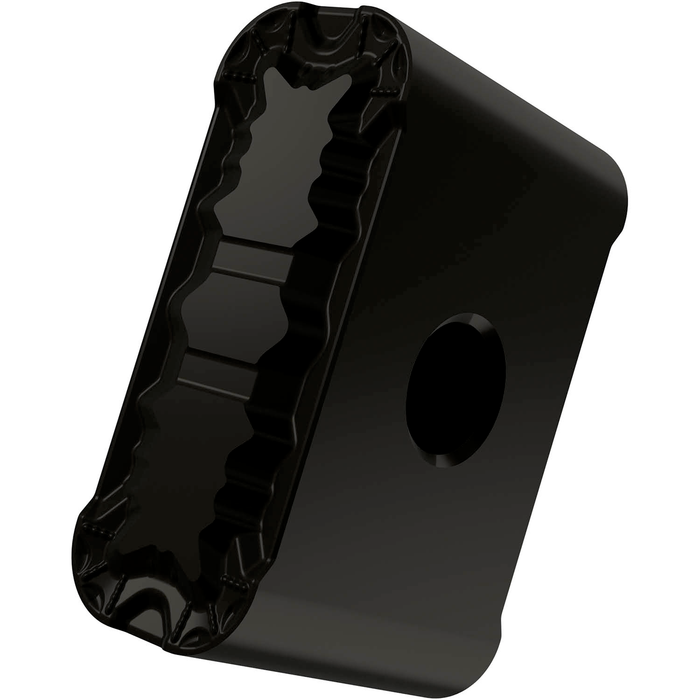

Special design negative turning insert, rectangular with a main edge length of 30mm, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges with facet, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$78.57 - $78.57
$78.57
$78.57 - $78.57
$78.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.315

Insert Design: LN.X 19, LN.X 30

Insert Shape Code: L - rectangular

Insert Thickness: 0.75

Chip Breaker: RF

Grade: T9315

Corner Radius - in: 0.157

Corner Radius - mm: 4

EDP: 6753309

EAN: 3603602886750

MFG Part Number: 6753309
