PSR5-R28:S45
SKU DOR6753350
Primary Use:

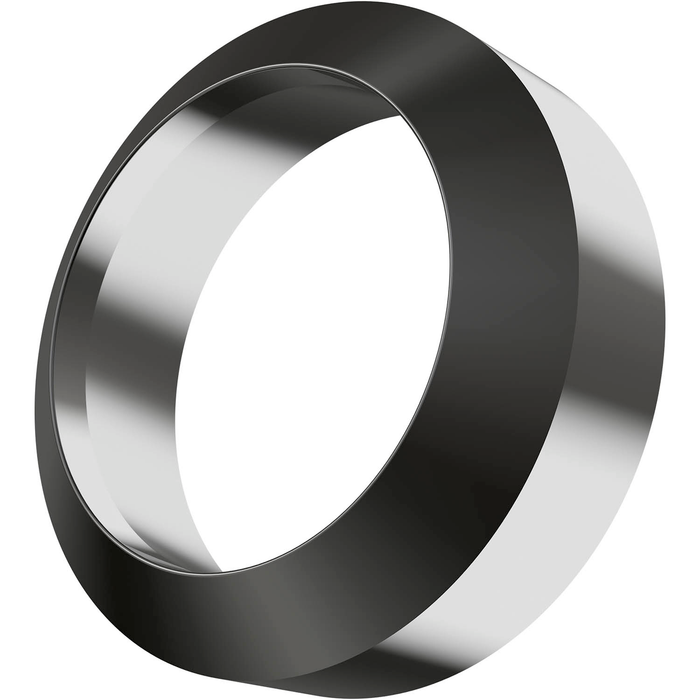

Scarfing ring with an outside diameter of 35mm, an inside diameter of 25mm, 12mm thick and a working radius of 28.5mm for tube diameters from 85 to 100mm, S45 uncoated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for deburring the inside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$80.00
-
Original price
$80.00
Original price
$80.00
$80.00
-
$80.00
Current price
$80.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Insert Design: PSR
Insert Shape Code: P - pentagonal
Insert Thickness: 0.472
Inscribed Circle Diameter: 1.378
Chip Breaker: No chipbreaker
Grade: S45
EDP: 6753350
EAN: 3603602887160
MFG Part Number: 6753350
