PSR5-R25:S45
SKU DOR6753352
Primary Use:

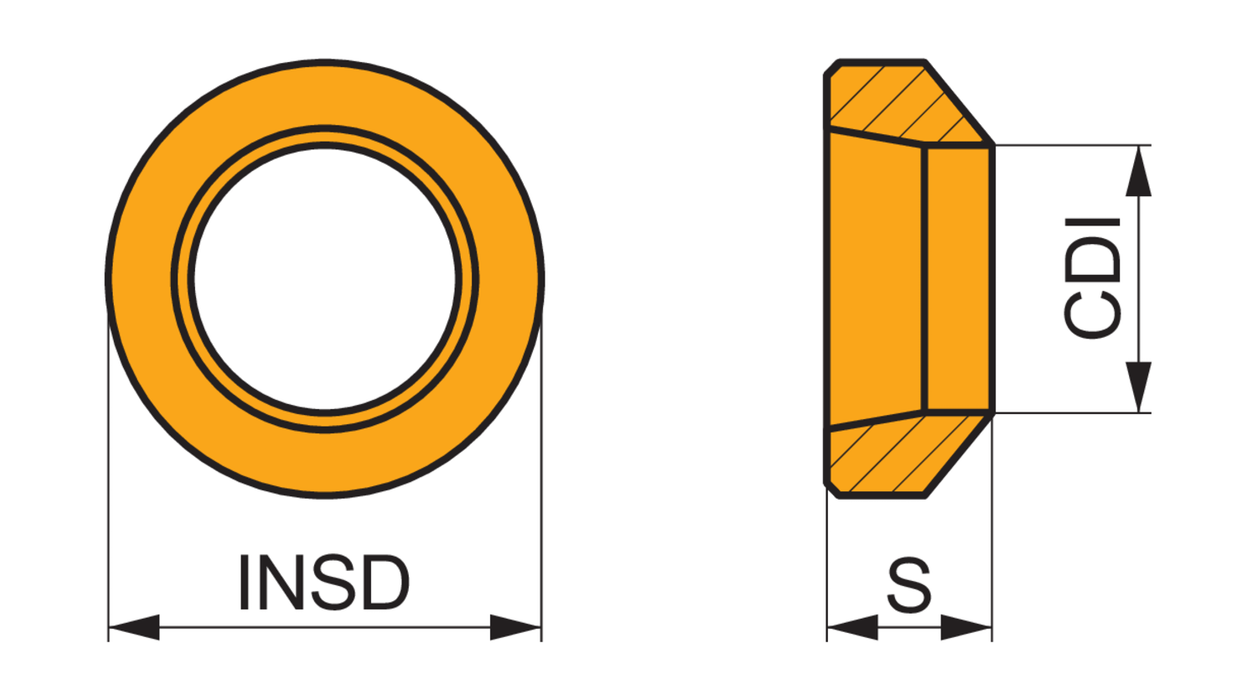

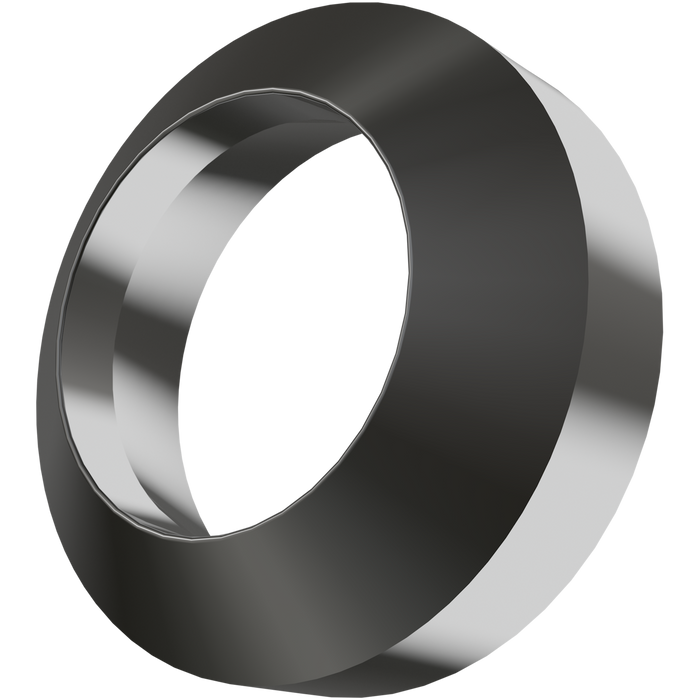

Scarfing ring with an outside diameter of 35mm, an inside diameter of 22mm, 12mm thick and a working radius of 25.1mm for tube diameters from 70 to 85mm, S45 uncoated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for deburring the inside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$80.00
-
Original price
$80.00
Original price
$80.00
$80.00
-
$80.00
Current price
$80.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Insert Design: PSR
Insert Shape Code: P - pentagonal
Insert Thickness: 0.472
Inscribed Circle Diameter: 1.378
Chip Breaker: No chipbreaker
Grade: S45
EDP: 6753352
EAN: 3603602887184
MFG Part Number: 6753352
