PSR1-R10:S45
SKU DOR6753356
Primary Use:

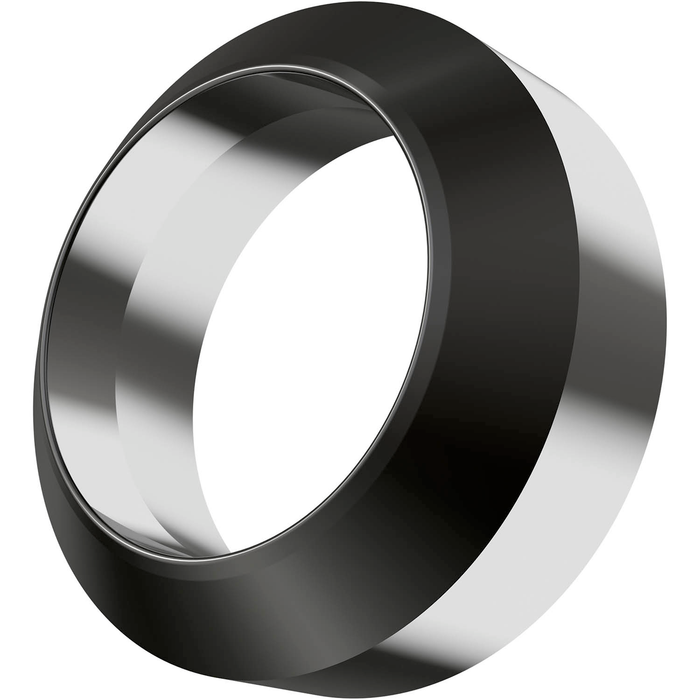

Scarfing ring with an outside diameter of 13mm, an inside diameter of 9mm, 5mm thick and a working radius of 10.2mm for tube diameters from 25 to 28mm, S45 uncoated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for deburring the inside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$31.36
-
Original price
$31.36
Original price
$31.36
$31.36
-
$31.36
Current price
$31.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Insert Design: PSR
Insert Shape Code: P - pentagonal
Insert Thickness: 0.197
Inscribed Circle Diameter: 0.512
Chip Breaker: No chipbreaker
Grade: S45
EDP: 6753356
EAN: 3603602887221
MFG Part Number: 6753356
