APKT 1604PDR-HM:8215

APKT 1604PDR-HM:8215

SKU DOR6753395
by Dormer Pramet
Primary Use: Possible Use:

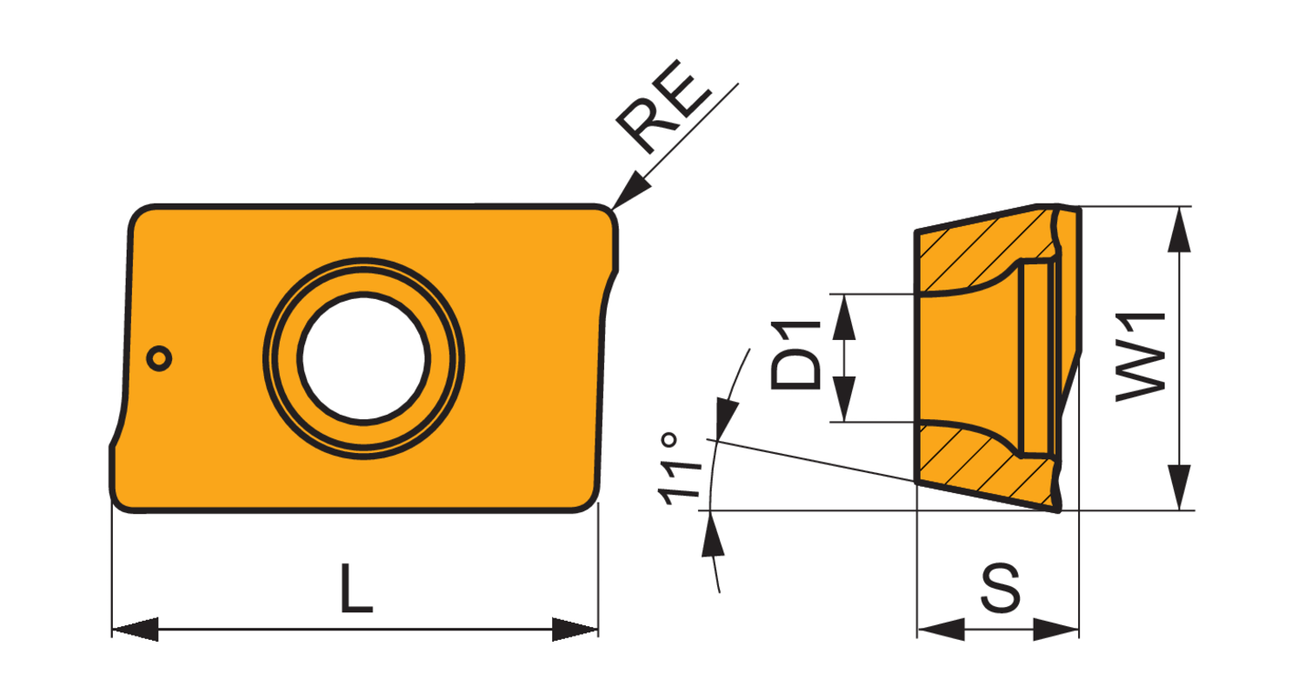

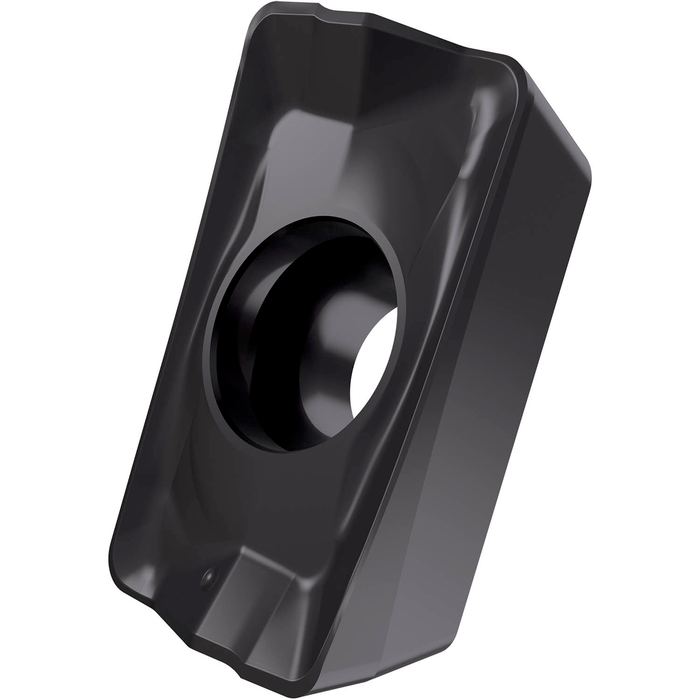

Single-sided milling insert APKT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and HM geometry, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron with shoulder mills SAP16D

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.01 - $17.01
$17.01
$17.01 - $17.01
$17.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.512

Insert Design: APKT

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.223

Chip Breaker: HM

Grade: 8215

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6753395

EAN: 3603602887610

MFG Part Number: 6753395
