SEEN 42AFSN:8215

SEEN 42AFSN:8215

SKU DOR6753406
by Dormer Pramet
Primary Use: Possible Use:

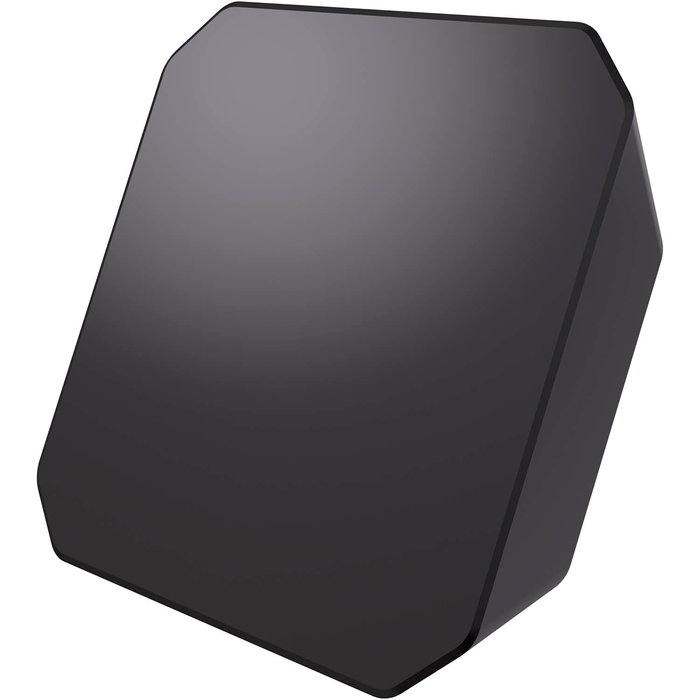

Single-sided milling insert SEEN 1203 with a plane rake surface, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.90 - $15.90
$15.90
$15.90 - $15.90
$15.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

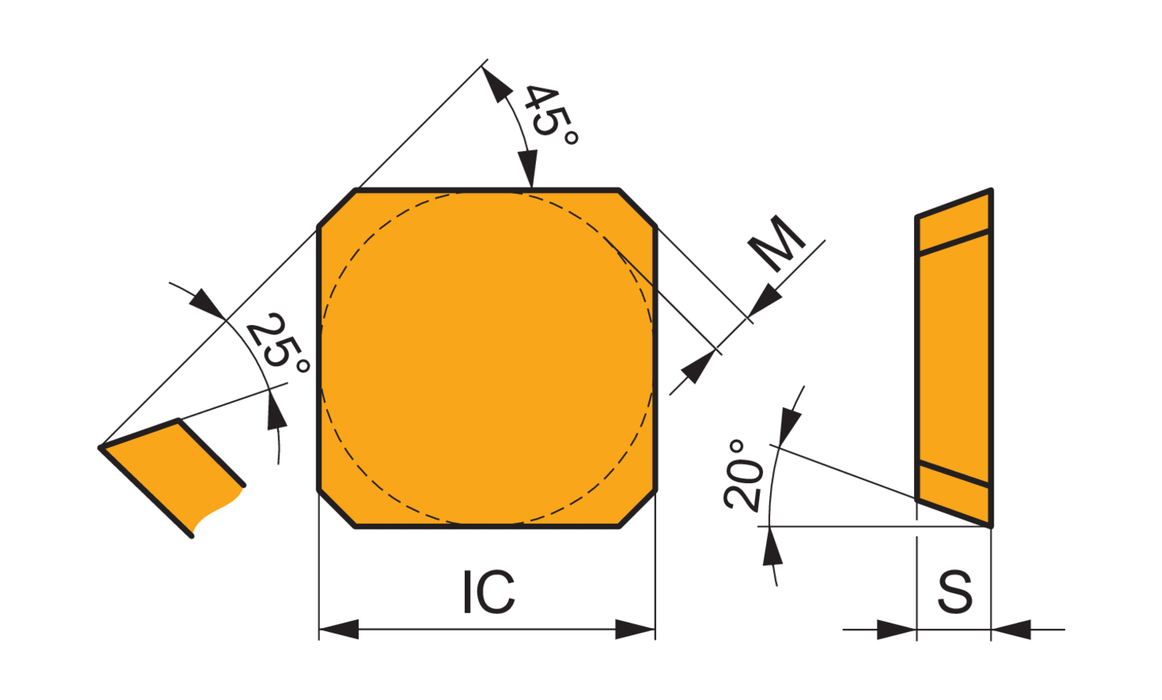

Max. Depth of Cut: 0.256

Insert Design: SEEN

Insert Shape Code: S - square

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.5

Chip Breaker: No chipbreaker

Grade: 8215

EDP: 6753406

EAN: 3603602887726

MFG Part Number: 6753406
