SEMT 09T3AFSN:8215

SEMT 09T3AFSN:8215

SKU DOR6753409
by Dormer Pramet
Primary Use: Possible Use:

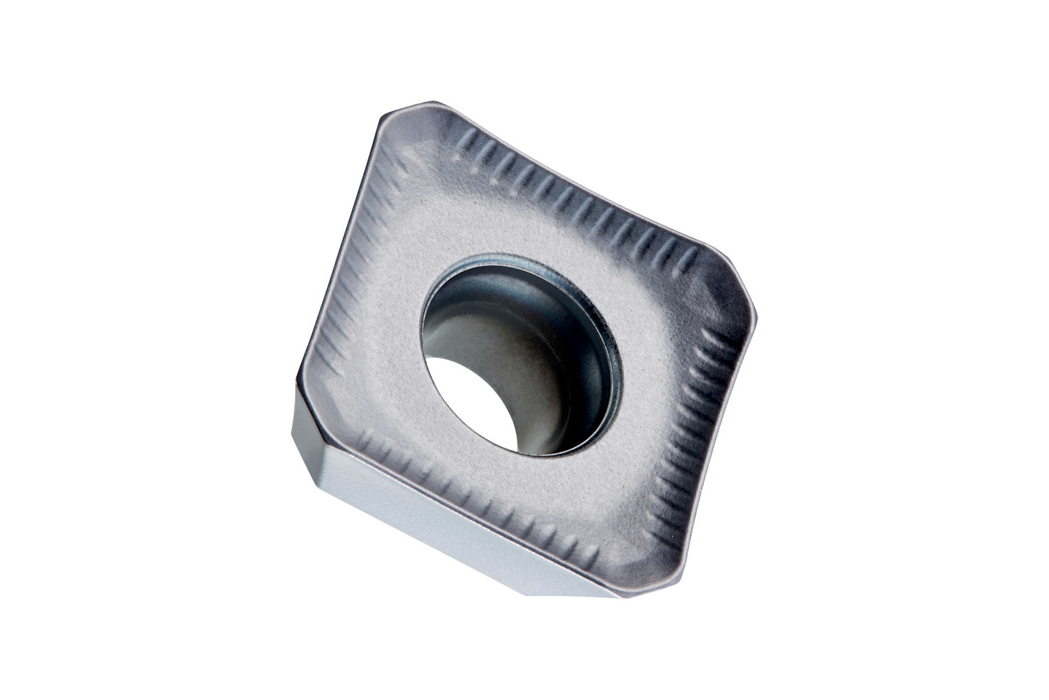

Single-sided milling insert SEMT 09T3 with chip-breakers, square for a maximum depth of cut of .1772", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel and cast-iron with face mills SSE09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$18.73 - $18.73
$18.73
$18.73 - $18.73
$18.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

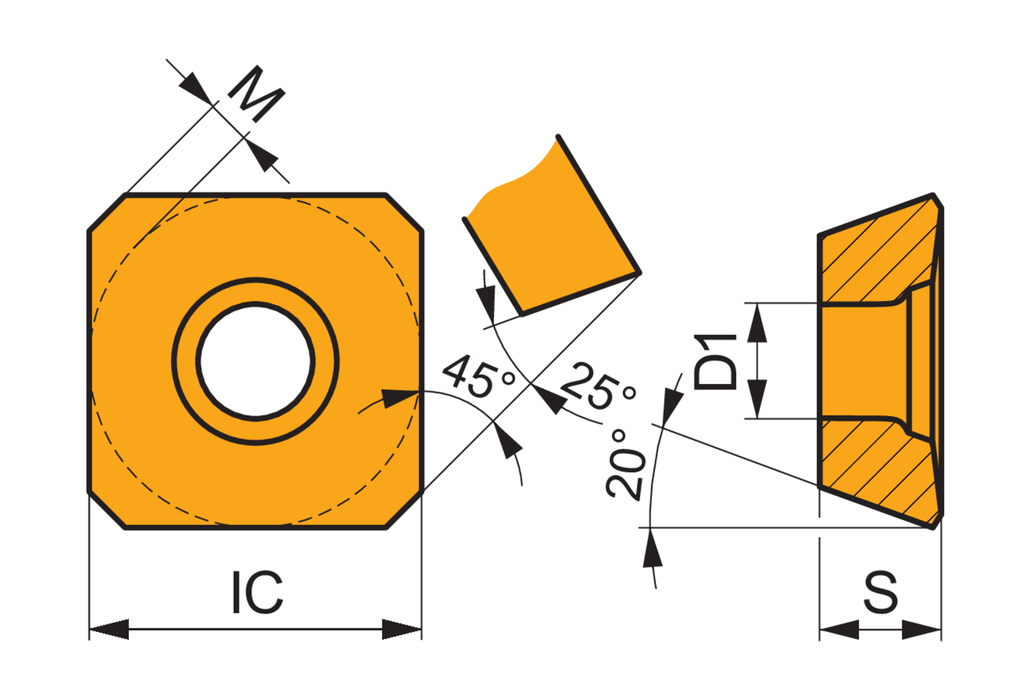

Max. Depth of Cut: 0.177

Insert Design: SEMT

Insert Shape Code: S - square

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: With chipbreaker -no designation

Grade: 8215

EDP: 6753409

EAN: 3603602887757

MFG Part Number: 6753409
