SNHN 53ENEN:8215

SNHN 53ENEN:8215

SKU DOR6753411
by Dormer Pramet
Primary Use: Possible Use:

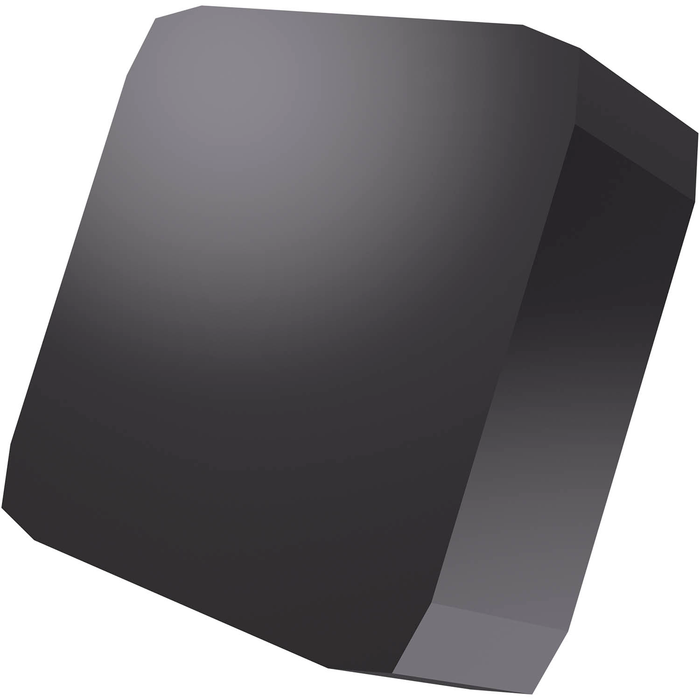

Double-sided milling insert SNHN 1504 with a plane rake surface, square for a maximum depth of cut of .5315", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$25.19 - $25.19
$25.19
$25.19 - $25.19
$25.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

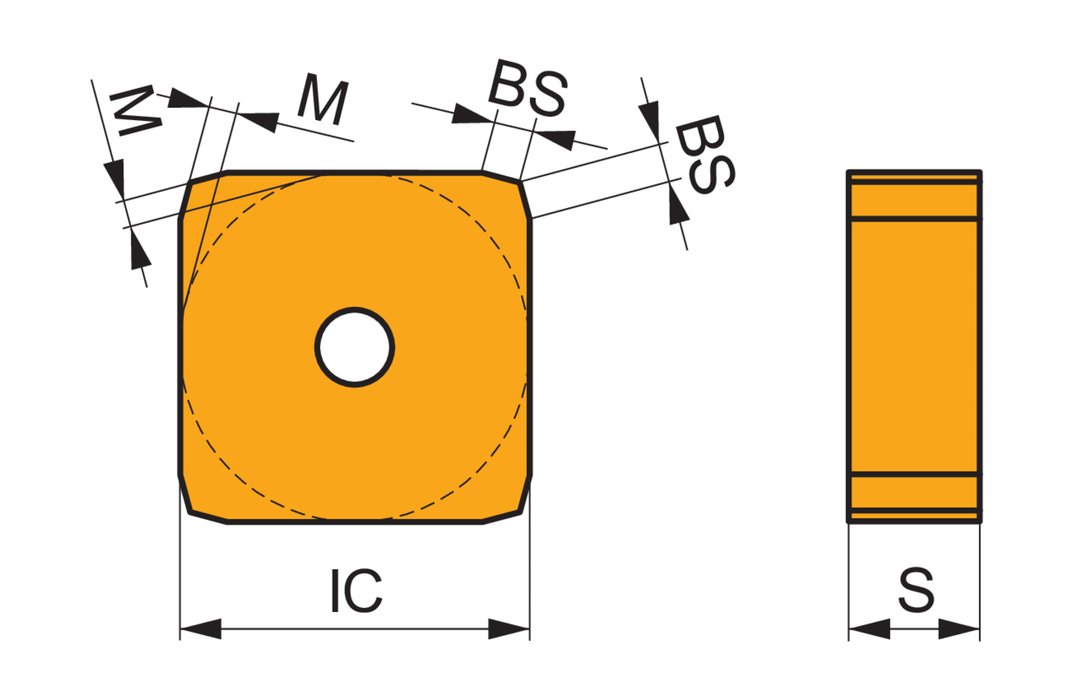

Max. Depth of Cut: 0.531

Insert Design: SNHN

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.625

Chip Breaker: No chipbreaker

Grade: 8215

EDP: 6753411

EAN: 3603602887771

MFG Part Number: 6753411
