SNMT 1205AZSR-M:8215
SKU DOR6753416
Primary Use:
Possible Use:

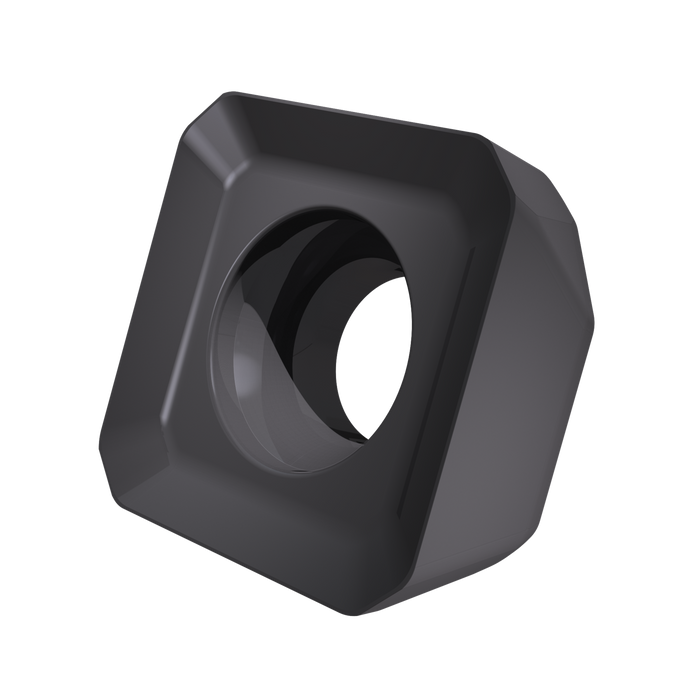

Single-sided milling insert SNMT 1205 with chip-breakers, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide for machining with face mills SSN12Z
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$27.86
-
Original price
$27.86
Original price
$27.86
$27.86
-
$27.86
Current price
$27.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

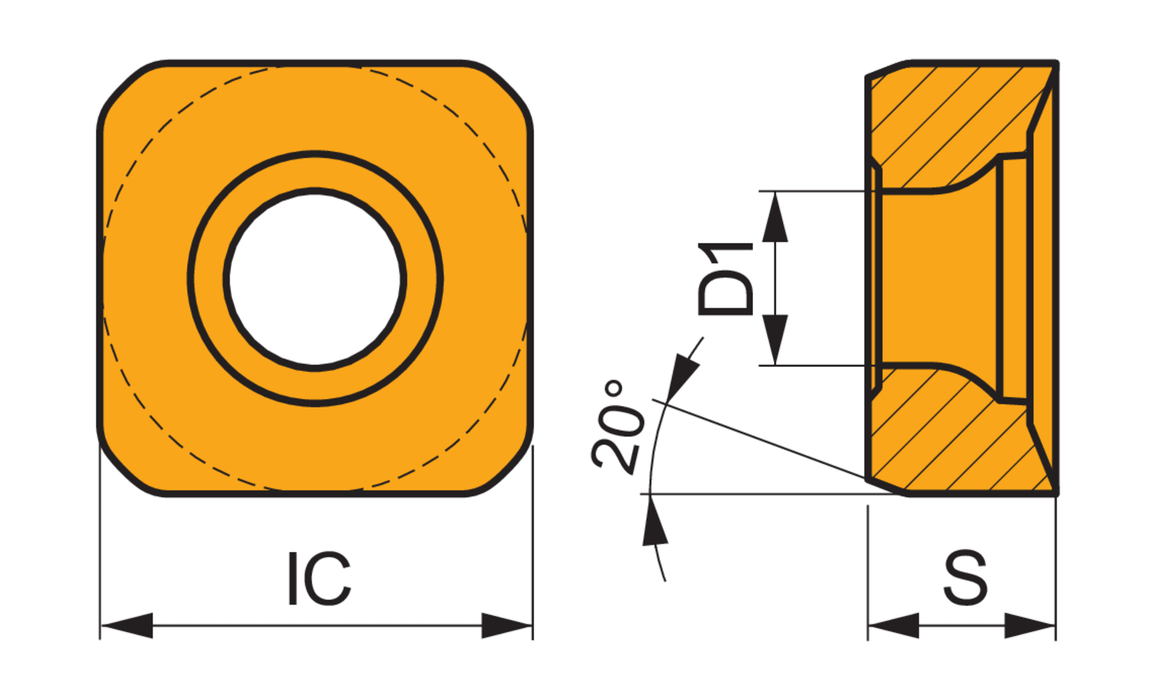

Max. Depth of Cut: 0.256
Insert Design: SNMT
Insert Shape Code: S - square
Insert Thickness: 0.219
Inscribed Circle Diameter: 0.5
Chip Breaker: M
Grade: 8215
EDP: 6753416
EAN: 3603602887825
MFG Part Number: 6753416
