SOMT 09T308-M:8215

SOMT 09T308-M:8215

SKU DOR6753419
by Dormer Pramet
Primary Use: Possible Use:

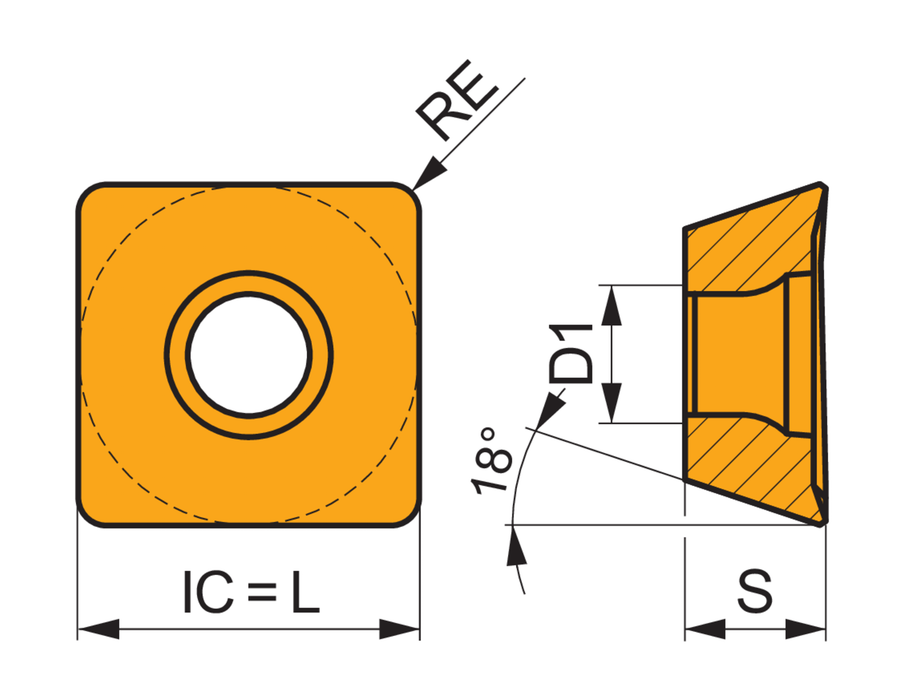

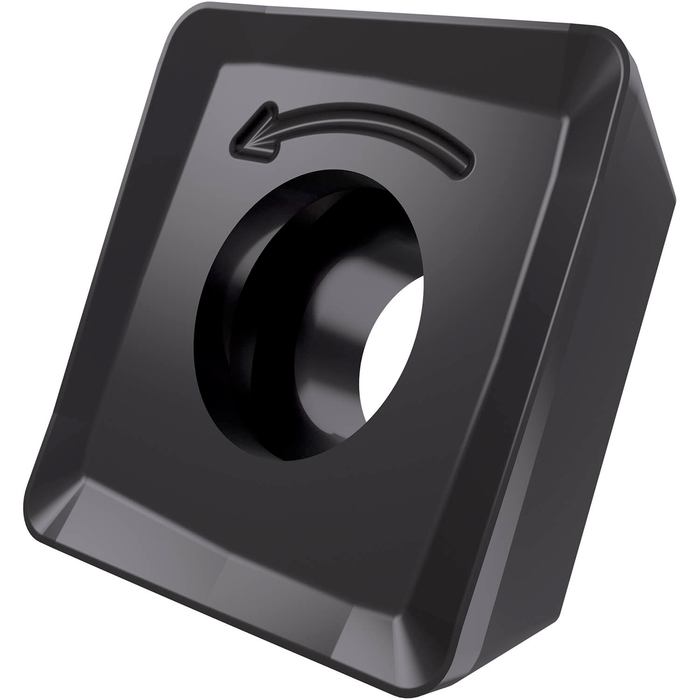

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of .315", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron with chamfer mills N-SSO09 or shoulder mills SSO09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$19.93 - $19.93
$19.93
$19.93 - $19.93
$19.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.315

Insert Design: SOMT

Insert Shape Code: S - square

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.376

Chip Breaker: M

Grade: 8215

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6753419

EAN: 3603602887856

MFG Part Number: 6753419
