TPU 322:8215

TPU 322:8215

SKU DOR6753424
by Dormer Pramet
Possible Use:

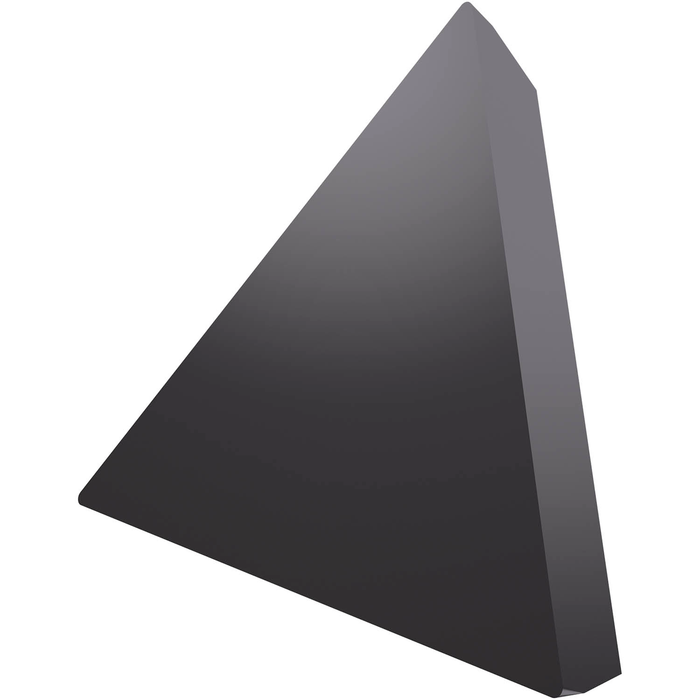

Single-sided milling insert TPUN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-U, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.11 - $11.11
$11.11
$11.11 - $11.11
$11.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

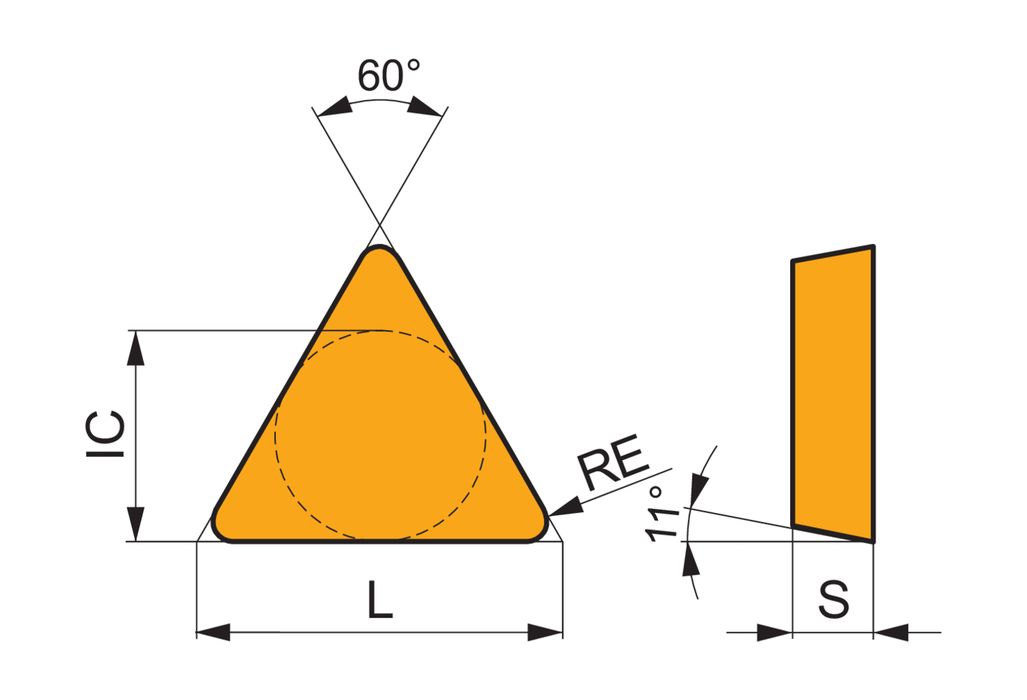

Max. Depth of Cut: 0.472

Insert Design: TPUN

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: 8215

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6753424

EAN: 3603602887900

MFG Part Number: 6753424
