HNGX 0906ANSN-M:M9325
SKU DOR6753669
Primary Use:

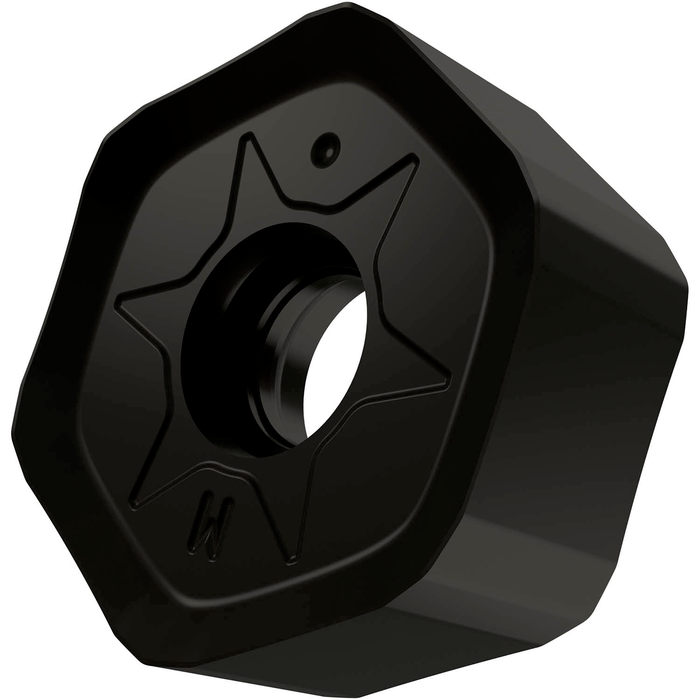

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with face mills SHN09C
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$37.71
-
Original price
$37.71
Original price
$37.71
$37.71
-
$37.71
Current price
$37.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

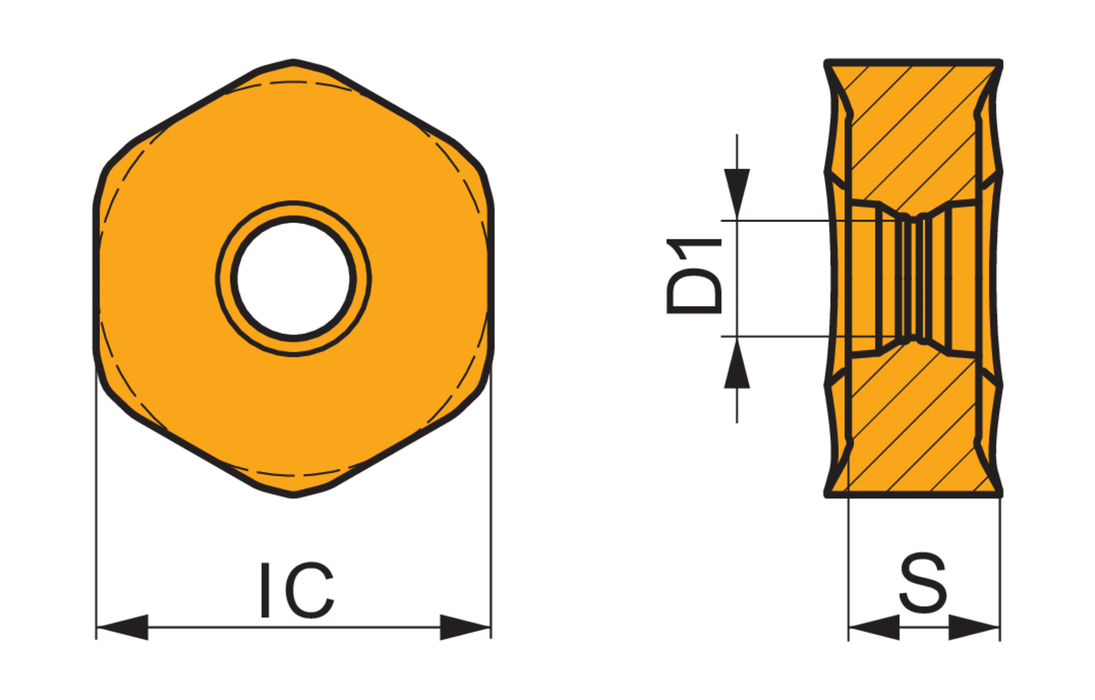

Max. Depth of Cut: 0.197
Insert Design: HNGX
Insert Shape Code: H - hexagonal
Insert Thickness: 0.25
Inscribed Circle Diameter: 0.65
Chip Breaker: M
Grade: M9325
EDP: 6753669
EAN: 3603602890351
MFG Part Number: 6753669
