CNMM 644-HR:T8345

CNMM 644-HR:T8345

SKU DOR6753678
by Dormer Pramet
Primary Use: Possible Use:

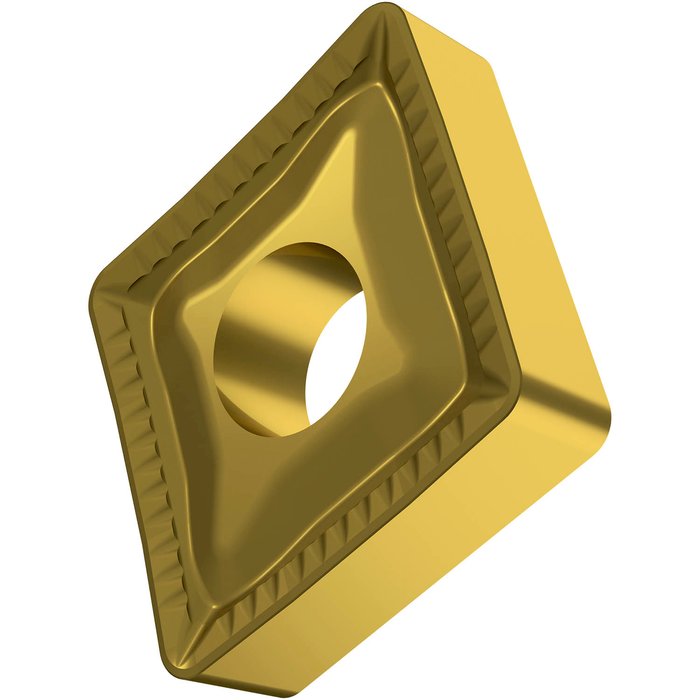

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker HR, in grade T8345, a PVD coated fine grained WC-Co carbide within ISO range P30 - P50, for heavy to extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$30.26 - $30.26
$30.26
$30.26 - $30.26
$30.26
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.524

Insert Design: CNMM

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.75

Chip Breaker: HR

Grade: T8345

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6753678

EAN: 3603602890443

MFG Part Number: 6753678
