CNMG 433-RM:T9315

CNMG 433-RM:T9315

SKU DOR6753725
by Dormer Pramet
Primary Use: Possible Use:

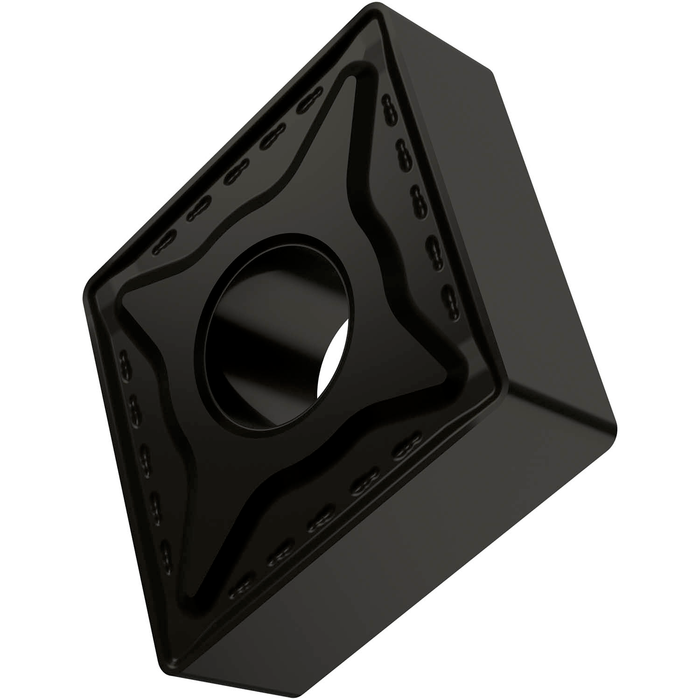

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for medium to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.00 - $14.00
$14.00
$14.00 - $14.00
$14.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.276

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: RM

Grade: T9315

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6753725

EAN: 3603602890917

MFG Part Number: 6753725
