SCMT 432-FM:T9325

SCMT 432-FM:T9325

SKU DOR6753835
by Dormer Pramet
Primary Use: Possible Use:

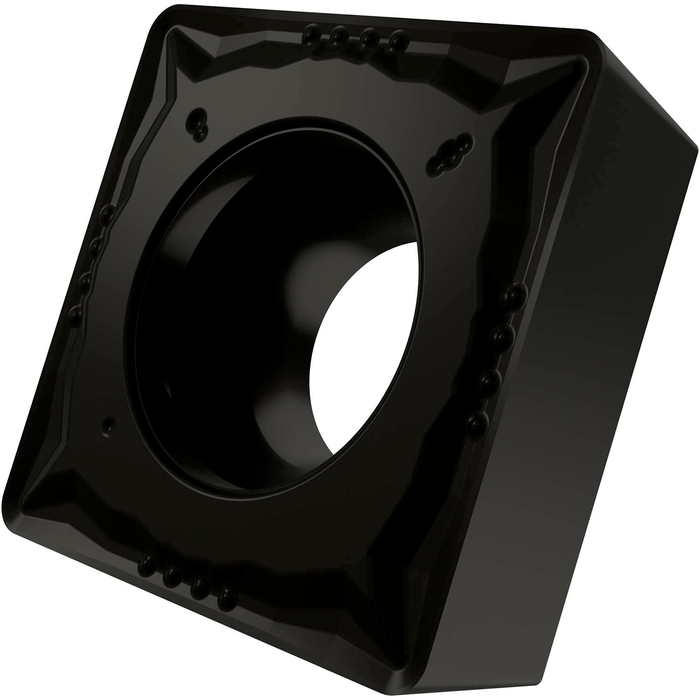

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$18.97 - $18.97
$18.97
$18.97 - $18.97
$18.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

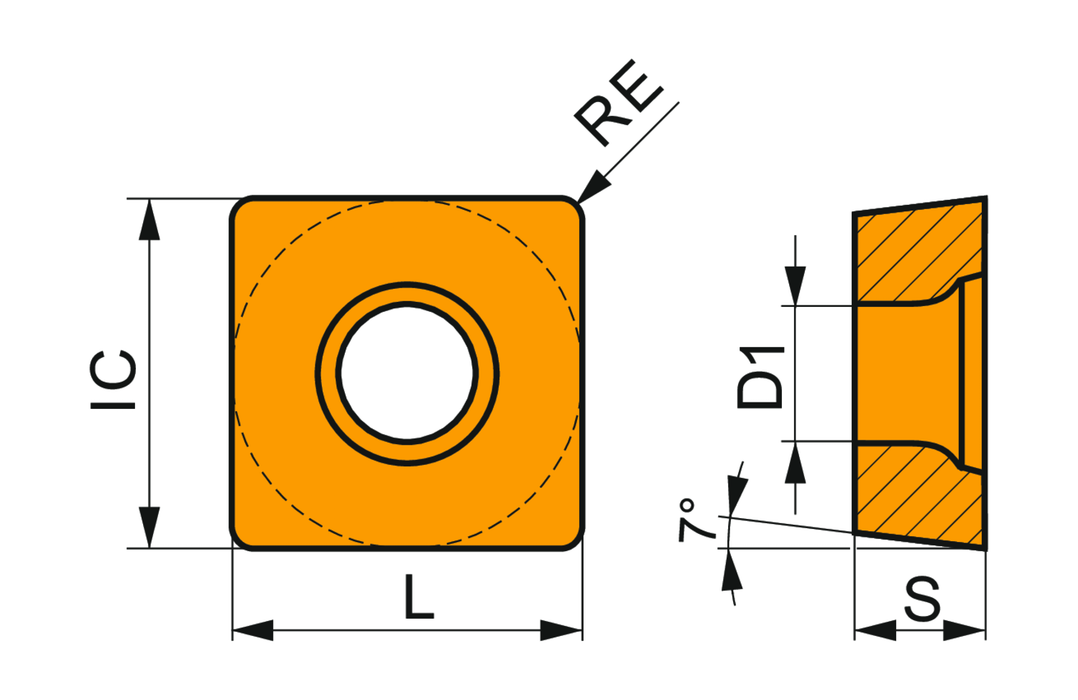

Max. Depth of Cut: 0.157

Insert Design: SCMT

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: FM

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6753835

EAN: 3603602892010

MFG Part Number: 6753835
