CNMG 434-M:T9325
SKU DOR6753893
by Pramet

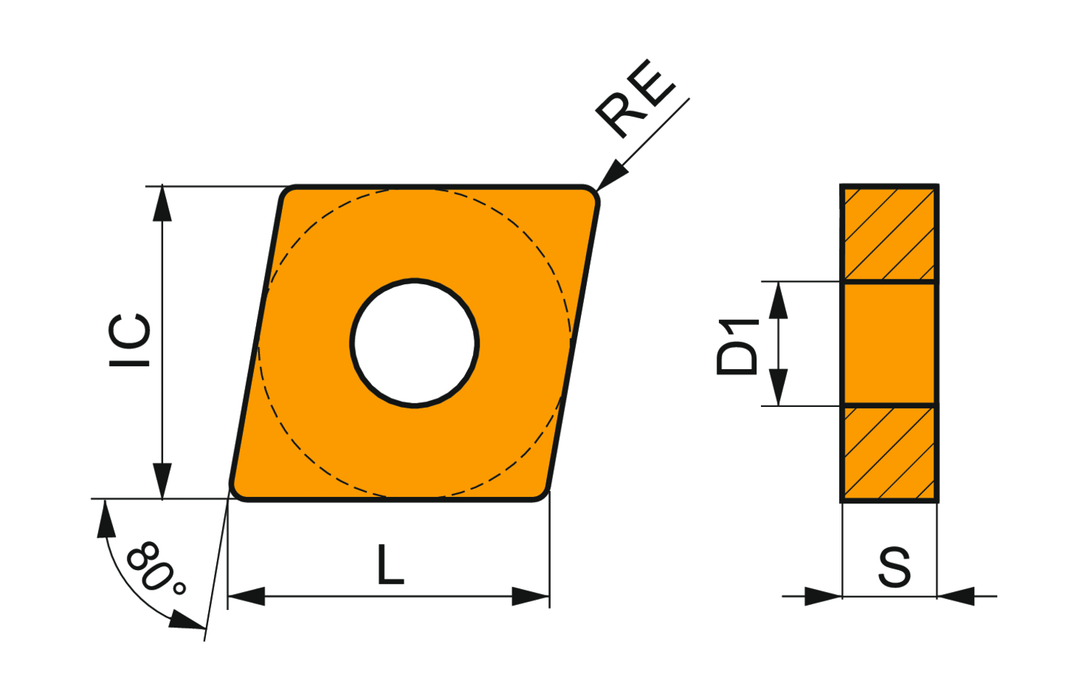

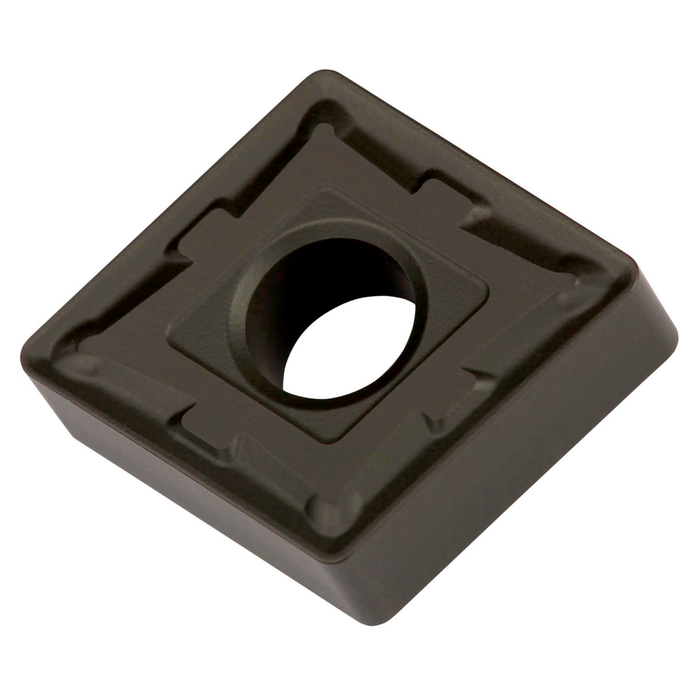

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to heavy machining of steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$11.71
-
Original price
$11.71
Original price
$11.71
$12.30
$12.30
-
$12.30
Current price
$12.30
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.5
Corner Radius - Inch: 0.063
Corner Radius - MM: 1.6
Grade: T9325
Chip Breaker: M
Insert Design: CNMG
P - Steel and cast steel: Primary use
K - Cast Iron: Possible use
EAN: 3603602892591
MFG Part Number: 6753893
