KNUX 160405EL-72:T9325

KNUX 160405EL-72:T9325

SKU DOR6753978
by Dormer Pramet
Primary Use: Possible Use:

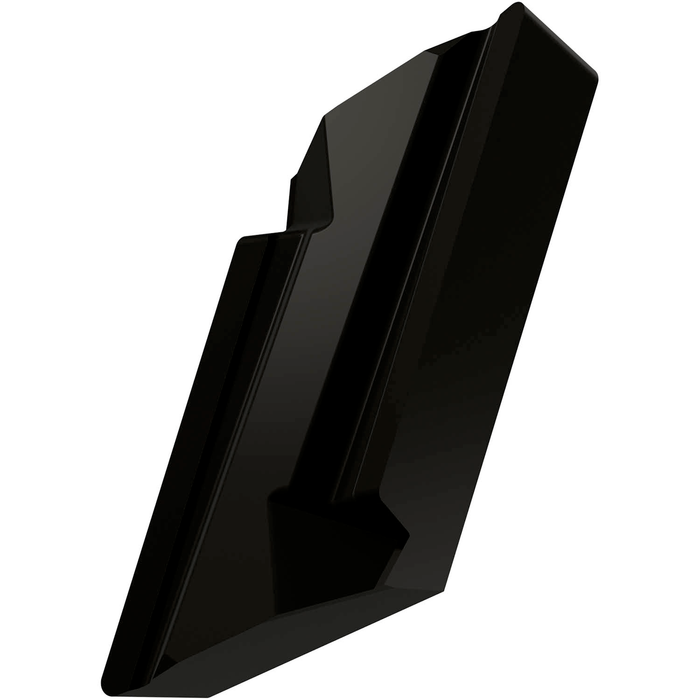

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 72 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.40 - $22.40
$22.40
$22.40 - $22.40
$22.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

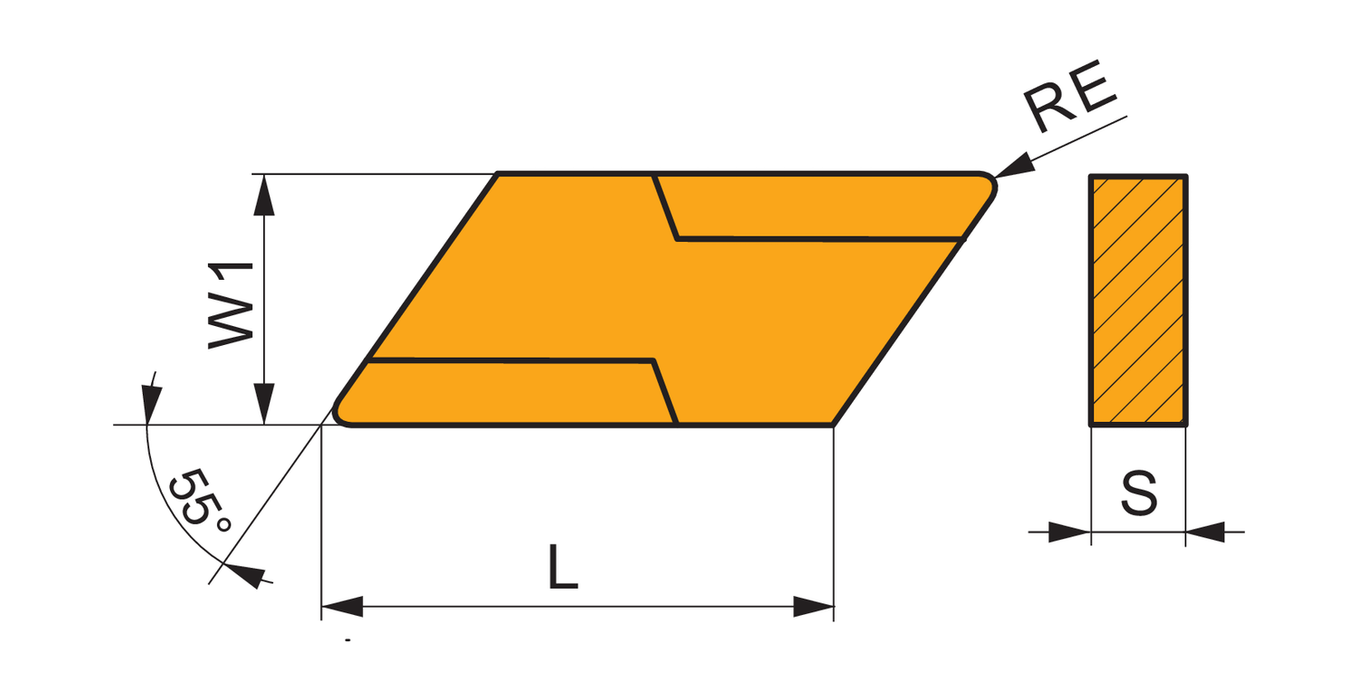

Max. Depth of Cut: 0.157

Insert Design: KNUX

Insert Shape Code: K - parallelogram 55° included angle

Insert Thickness: 0.187

Chip Breaker: 72

Grade: T9325

Corner Radius - in: 0.02

Corner Radius - mm: 0.5

EDP: 6753978

EAN: 3603602893444

MFG Part Number: 6753978
