LNUX 301940SN-DM:T9325

LNUX 301940SN-DM:T9325

SKU DOR6753979
by Dormer Pramet
Primary Use: Possible Use:

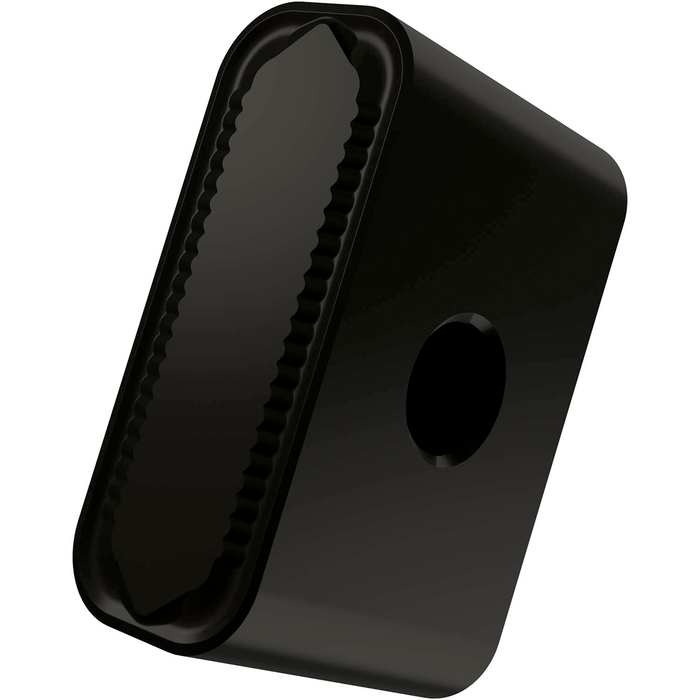

Special design negative turning insert, rectangular with a main edge length of 30mm, 4mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker DM with rounded cutting edges with facet, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for heavy to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$80.00 - $80.00
$80.00
$80.00 - $80.00
$80.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

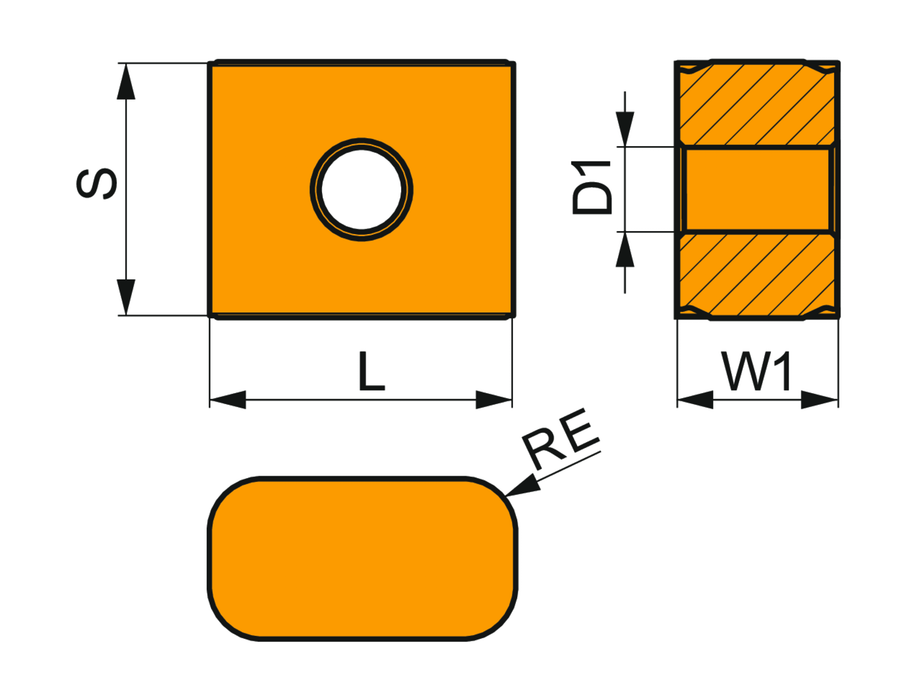

Max. Depth of Cut: 0.394

Insert Design: LN.X 19, LN.X 30

Insert Shape Code: L - rectangular

Insert Thickness: 0.75

Chip Breaker: DM

Grade: T9325

Corner Radius - in: 0.157

Corner Radius - mm: 4

EDP: 6753979

EAN: 3603602893451

MFG Part Number: 6753979
