SNMG 543-RM:T9325
SKU DOR6754019
by Pramet

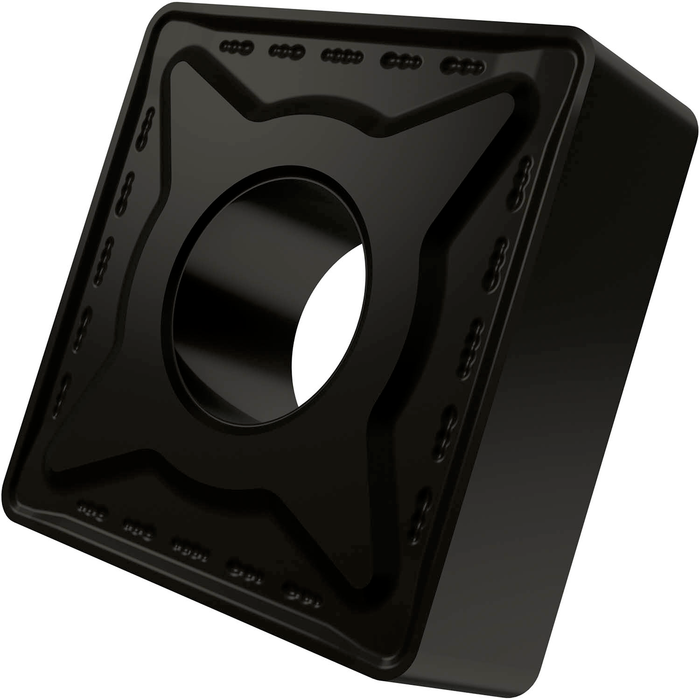

Double-sided negative turning insert, square with inscribed circle diameter of 5/8", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium to heavy machining of steels and stainless-steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$19.01
-
Original price
$19.01
Original price
$19.01
$19.01
-
$19.01
Current price
$19.01
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

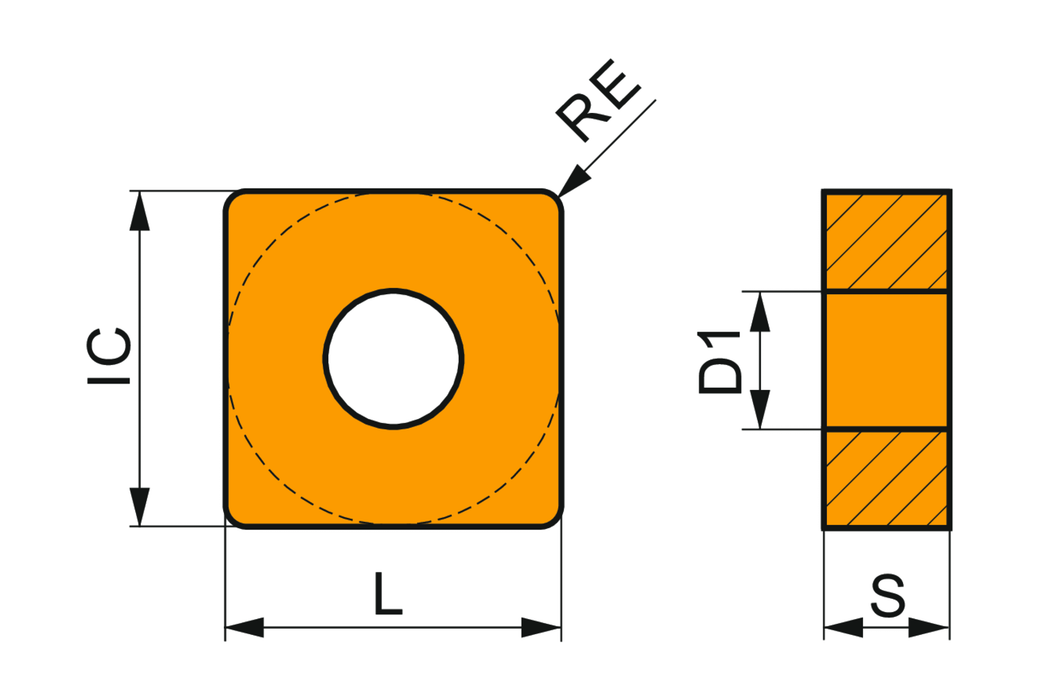

Inscribed Circle Diameter - IN: 0.625
Corner Radius - Inch: 0.047
Corner Radius - MM: 1.2
Grade: T9325
Chip Breaker: RM
Insert Design: SNMG
P - Steel and cast steel: Primary use
M - Stainless steel: Primary use
K - Cast Iron: Possible use
S - High-temperature alloys: Possible use
EAN: 3603602893857
MFG Part Number: 6754019
