SNMG 643-M:T9325

SNMG 643-M:T9325

SKU DOR6754022
by Dormer Pramet
Primary Use: Possible Use:

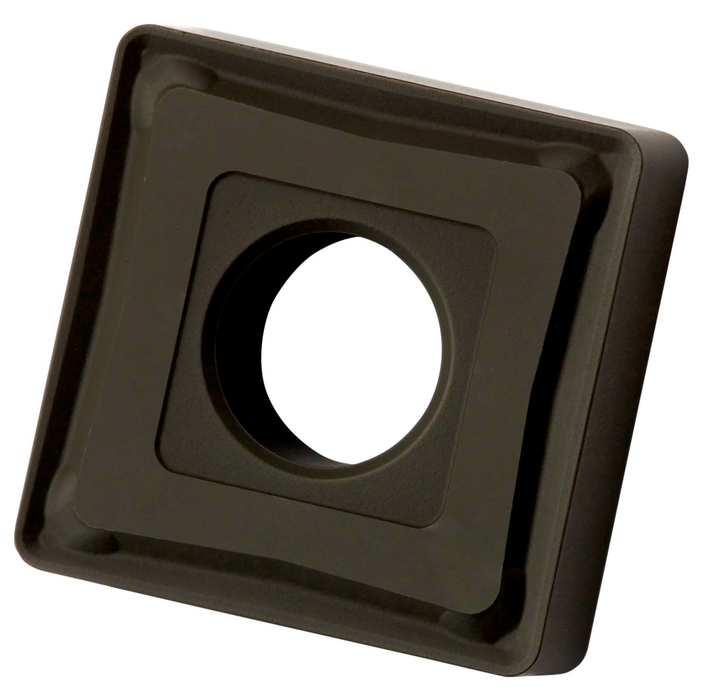

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$25.75 - $25.75
$25.75
$25.75 - $25.75
$25.75
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.315

Insert Design: SNMG

Insert Shape Code: S - square

Insert Shape Code: gid://shopify/Metaobject/145756684350

Insert Thickness: 0.25

Steel and Cast Steel: Primary use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.75

Chip Breaker: M

Grade: T9325

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6754022

EAN: 3603602893888

MFG Part Number: 6754022
