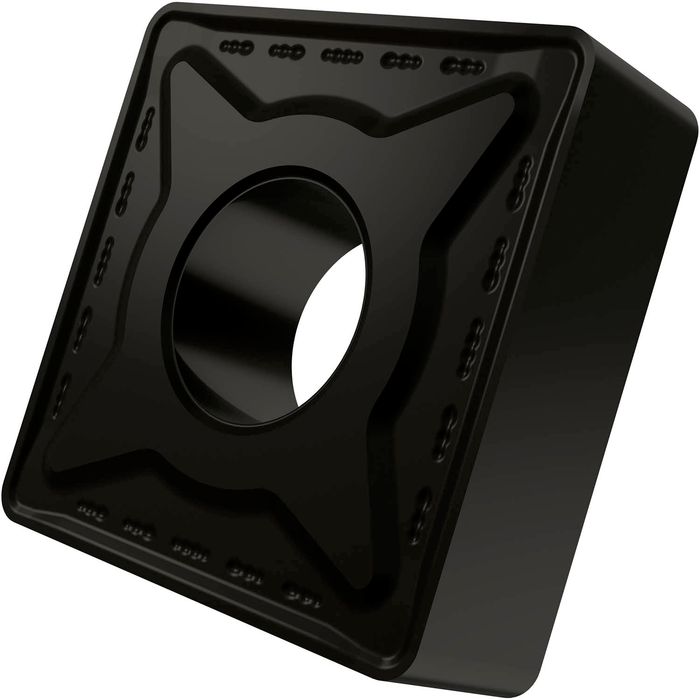

SNMG 866-RM:T9325

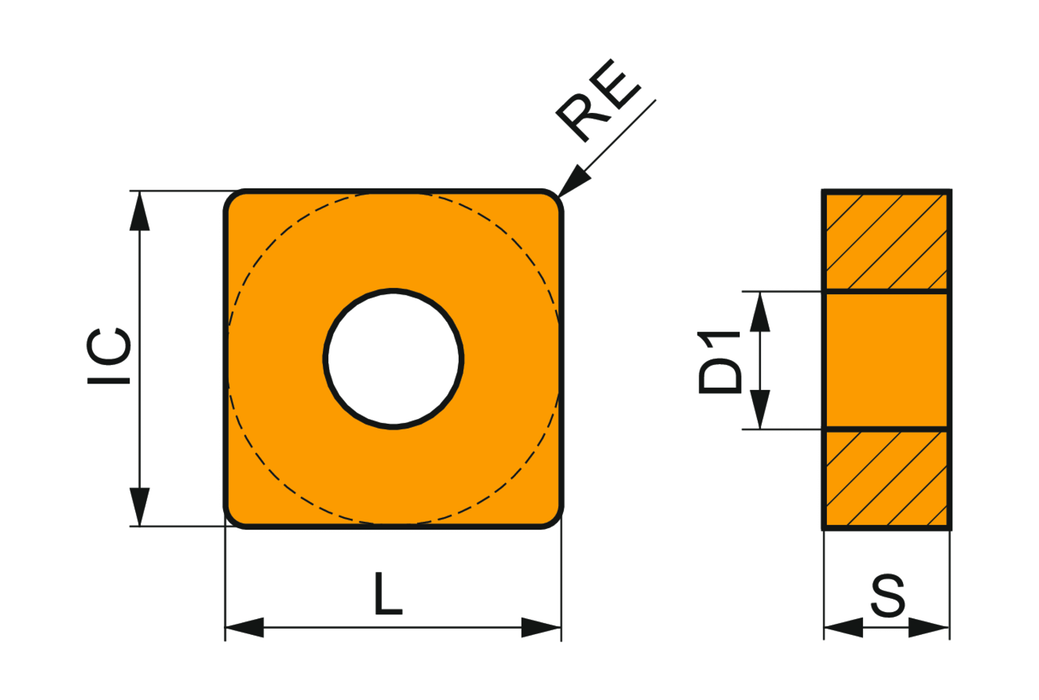

Double-sided negative turning insert, square with inscribed circle diameter of 1", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium to heavy machining of steels and stainless-steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 1.0
Coating: T9325
Chip Breaker: RM
Insert Design: SNMG
Corner Radius (IN): 0.094
