SNMM 544-NR2:T9325

SNMM 544-NR2:T9325

SKU DOR6754133
by Dormer Pramet
Primary Use: Possible Use:

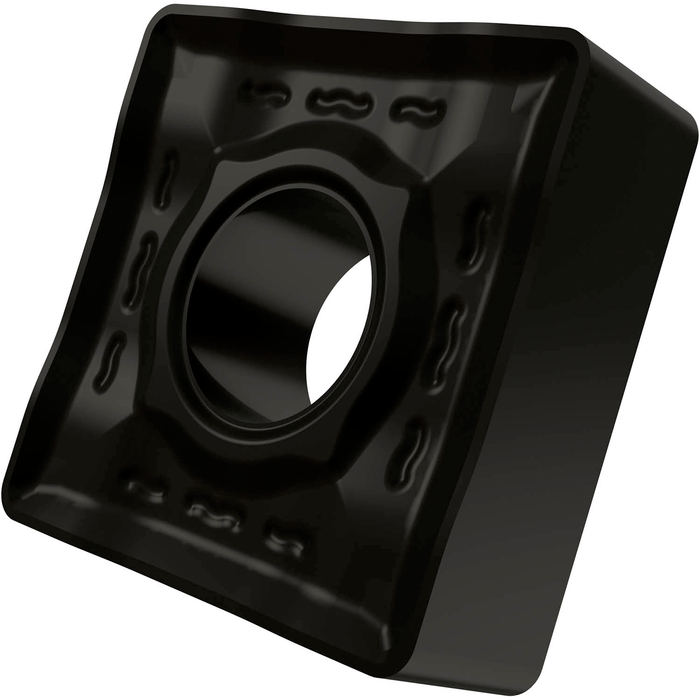

Double-sided negative turning insert, square with inscribed circle diameter of 5/8", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NR2, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 - P35 and M10 - M30, for medium to extra heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.61 - $21.61
$21.61
$21.61 - $21.61
$21.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.354

Insert Design: SNMM

Insert Shape Code: S - square

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.625

Chip Breaker: NR2

Grade: T9325

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6754133

EAN: 3603602894991

MFG Part Number: 6754133
