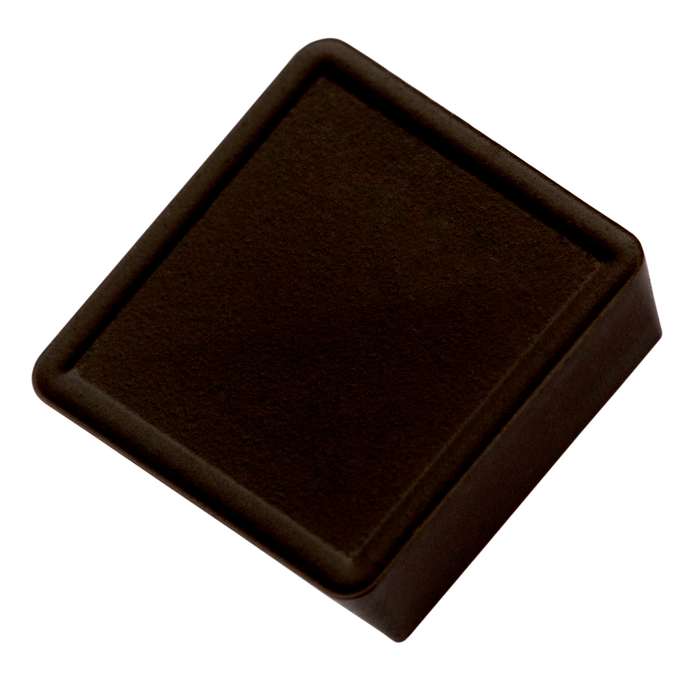

SPMR 322-46:T9325

SPMR 322-46:T9325

SKU DOR6754160
by Dormer Pramet
Primary Use: Possible Use:

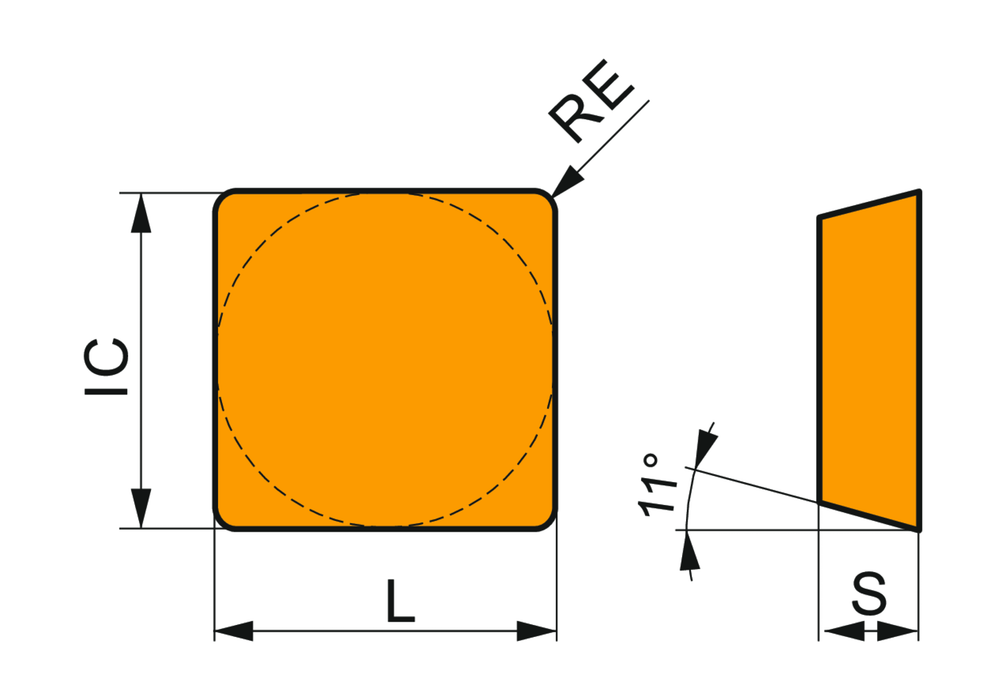

Single-sided positive turning insert, square with 11° clearance, inscribed circle diameter of 3/8", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 46, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.04 - $11.04
$11.04
$11.04 - $11.04
$11.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.118

Insert Design: SPMR

Insert Shape Code: S - square

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: 46

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6754160

EAN: 3603602895264

MFG Part Number: 6754160
