TNMG 544-RM:T9325

TNMG 544-RM:T9325

SKU DOR6754177
by Dormer Pramet
Primary Use: Possible Use:

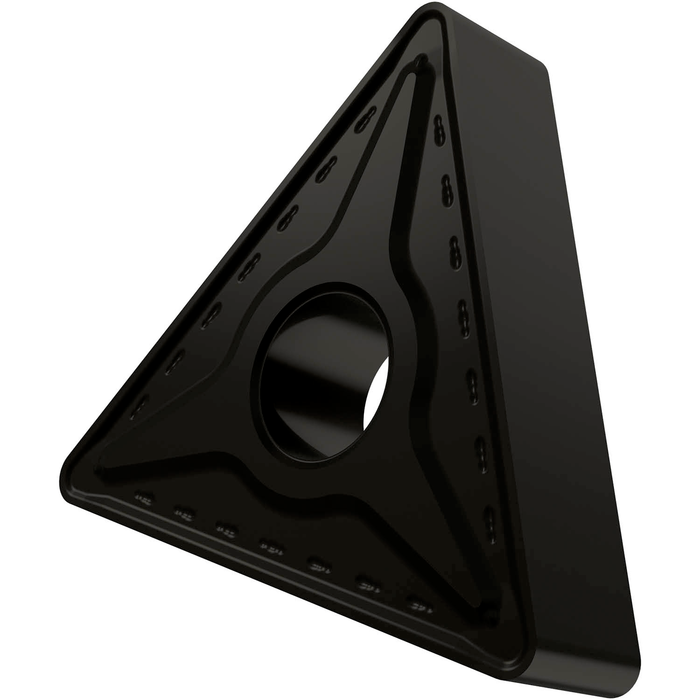

Double-sided negative turning insert, triangular with inscribed circle diameter of 5/8", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium to heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.50 - $22.50
$22.50
$22.50 - $22.50
$22.50
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

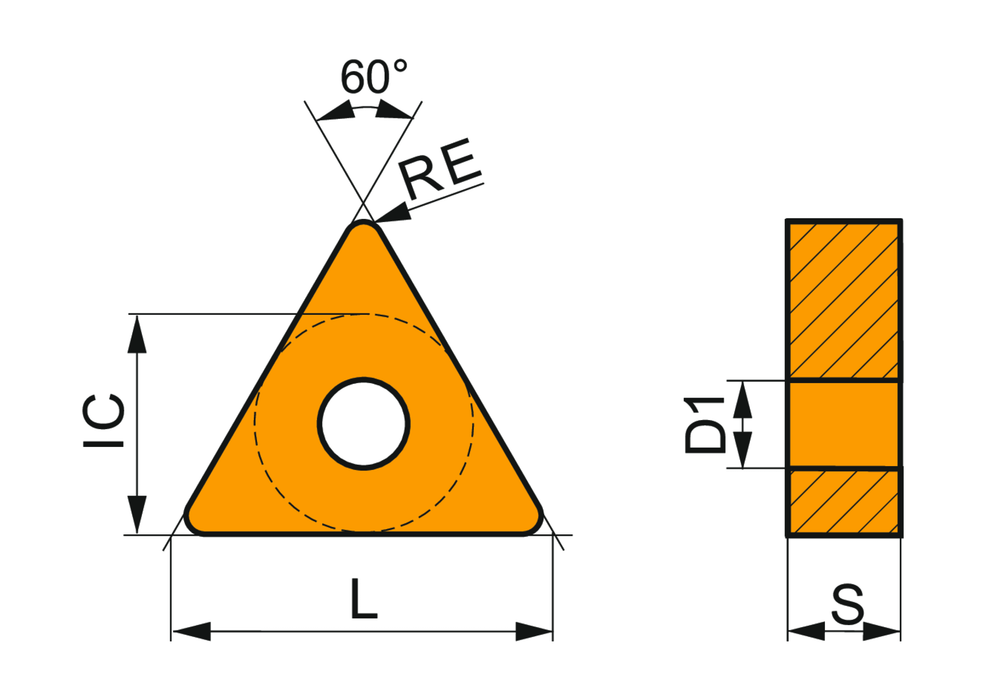

Max. Depth of Cut: 0.35

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.25

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Possible use

High Temp Alloys: Possible use

Inscribed Circle Diameter: 0.625

Chip Breaker: RM

Grade: T9325

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6754177

EAN: 3603602895431

MFG Part Number: 6754177
