VBMT 220.5-FM:T9325

VBMT 220.5-FM:T9325

SKU DOR6754426
by Dormer Pramet
Primary Use: Possible Use:

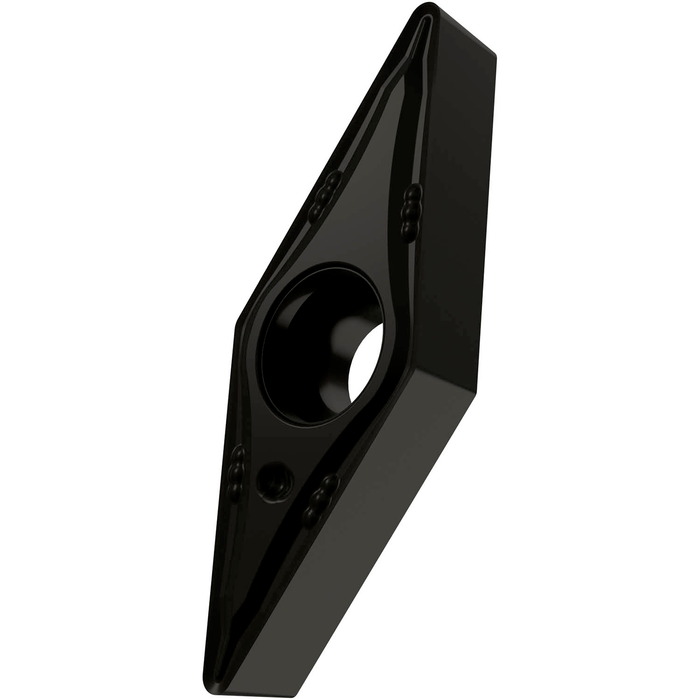

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$20.04 - $20.04
$20.04
$20.04 - $20.04
$20.04
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

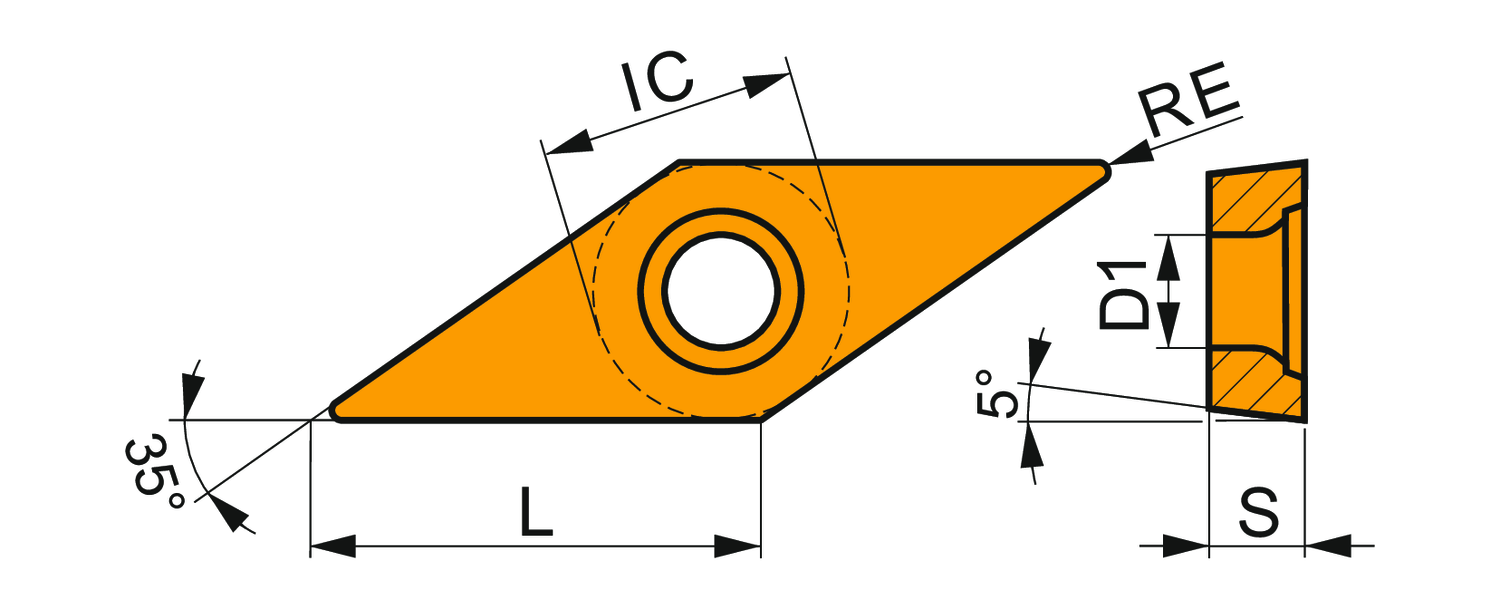

Max. Depth of Cut: 0.079

Insert Design: VBMT

Insert Shape Code: V - rhombic 35° included angle

Insert Shape Code: gid://shopify/Metaobject/145756749886

Insert Thickness: 0.125

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.25

Chip Breaker: FM

Grade: T9325

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 6754426

EAN: 3603602897923

MFG Part Number: 6754426
