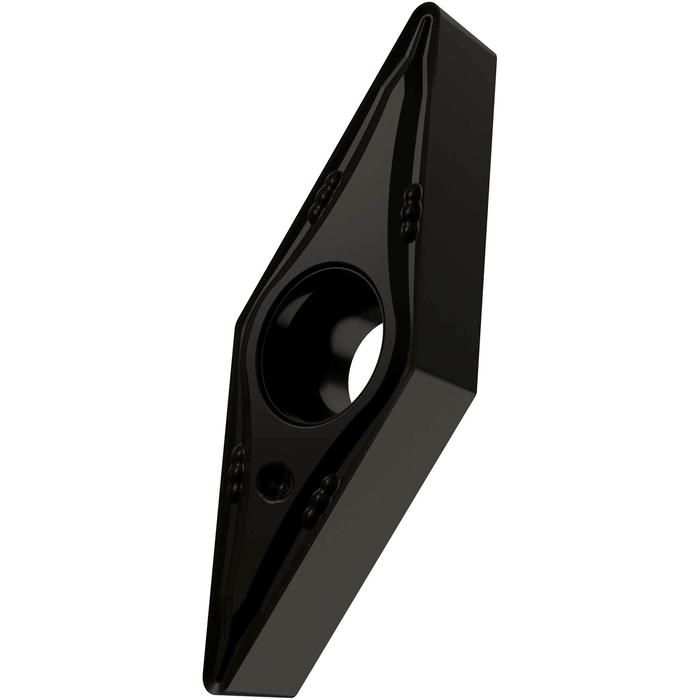

VBMT 222-FM:T9325

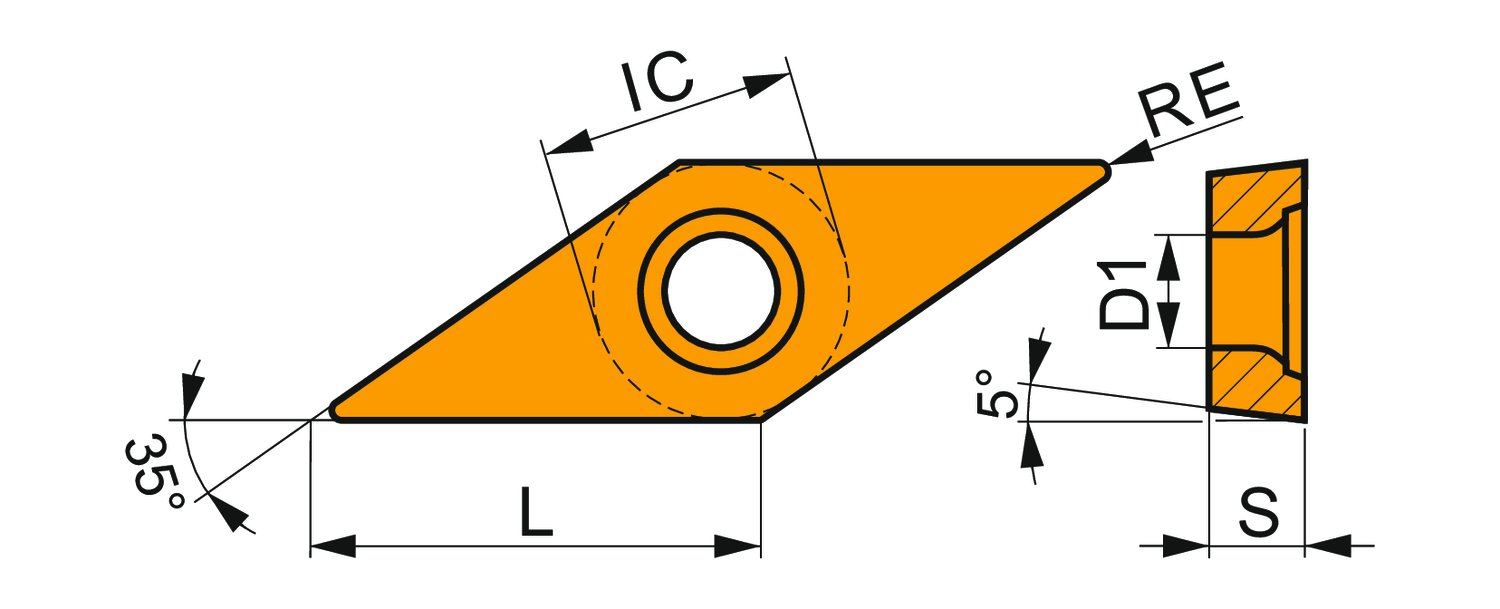

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.25
Coating: T9325
Chip Breaker: FM
Insert Design: VBMT
Corner Radius (IN): 0.031
