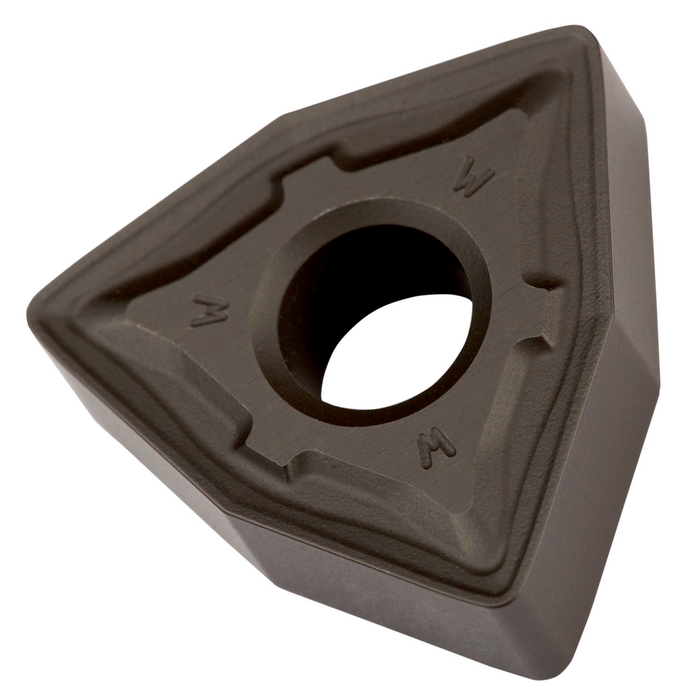

WNMG 332W-M:T9325

WNMG 332W-M:T9325

SKU DOR6754457
by Dormer Pramet
Primary Use: Possible Use:

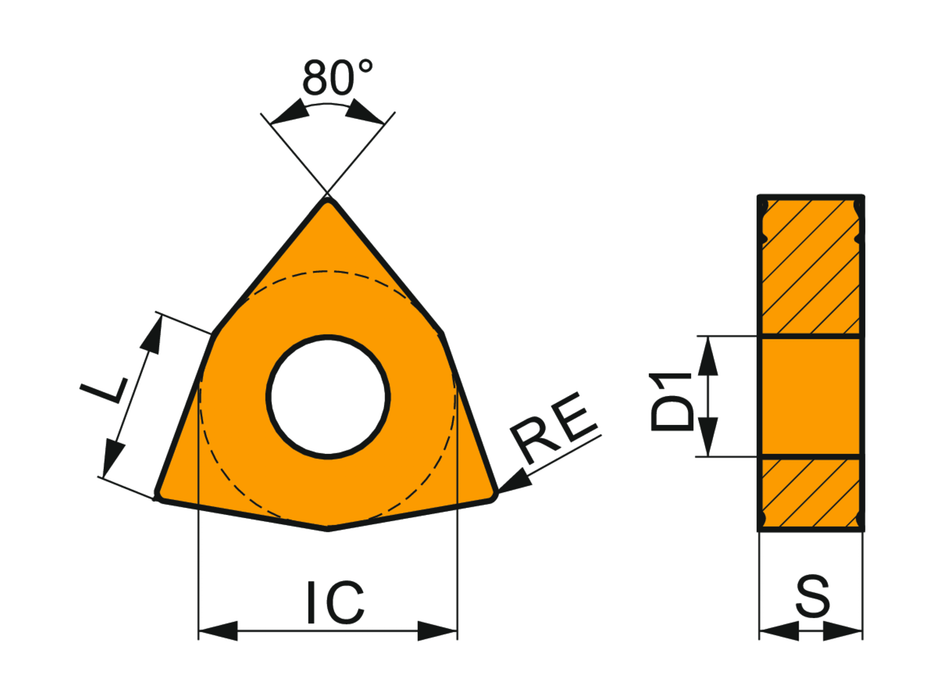

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 3/8", 3/16" thick, 1/32" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker M with WIPER edge design, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.64 - $12.64
$12.64
$12.64 - $12.64
$12.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.118

Insert Design: WNMG

Insert Shape Code: W - trigon

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: W-M

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6754457

EAN: 3603602898234

MFG Part Number: 6754457
