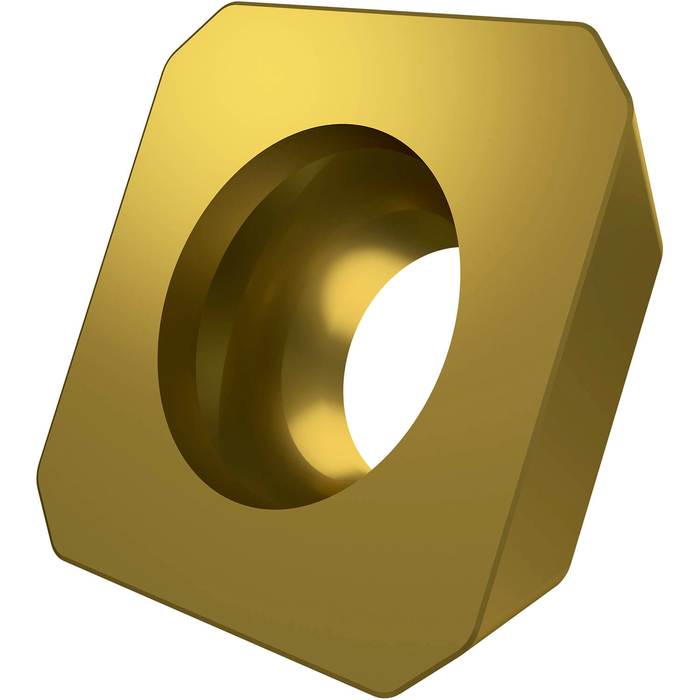

SEEW 1204AFSN:M9325
SKU DOR6754569
Primary Use:
Possible Use:
Single-sided milling insert SEEW 1204 with a plane rake surface, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$24.56
-
Original price
$24.56
Original price
$24.56
$24.56
-
$24.56
Current price
$24.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

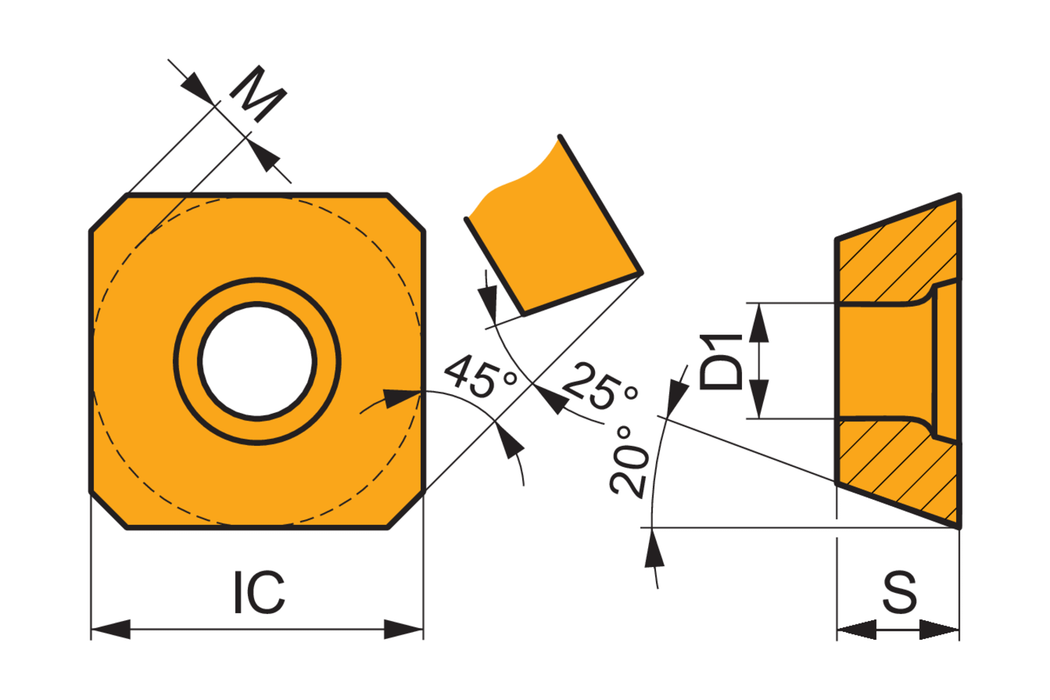

Max. Depth of Cut: 0.256
Insert Design: SEEW
Insert Shape Code: S - square
Insert Thickness: 0.187
Inscribed Circle Diameter: 0.5
Chip Breaker: No chipbreaker
Grade: M9325
EDP: 6754569
EAN: 3603602899354
MFG Part Number: 6754569
