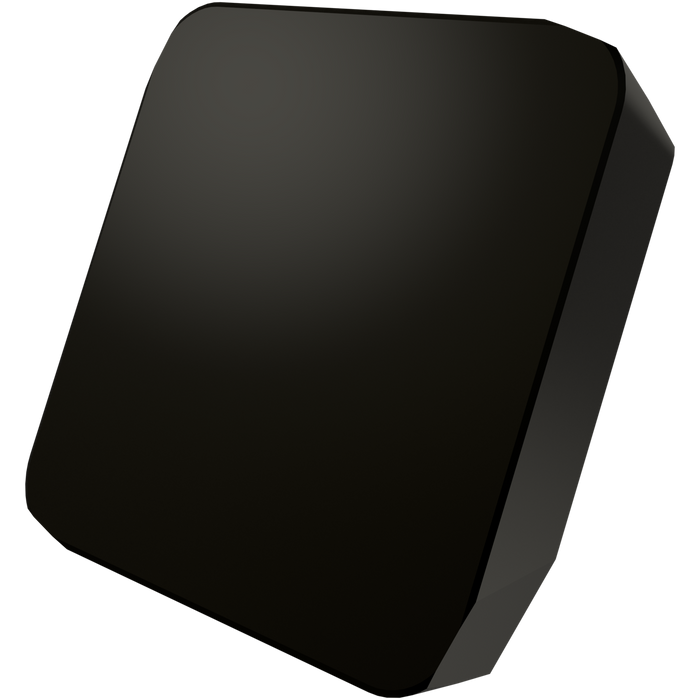

SPKN 42EDSR:M9325
SKU DOR6754578
Primary Use:
Possible Use:

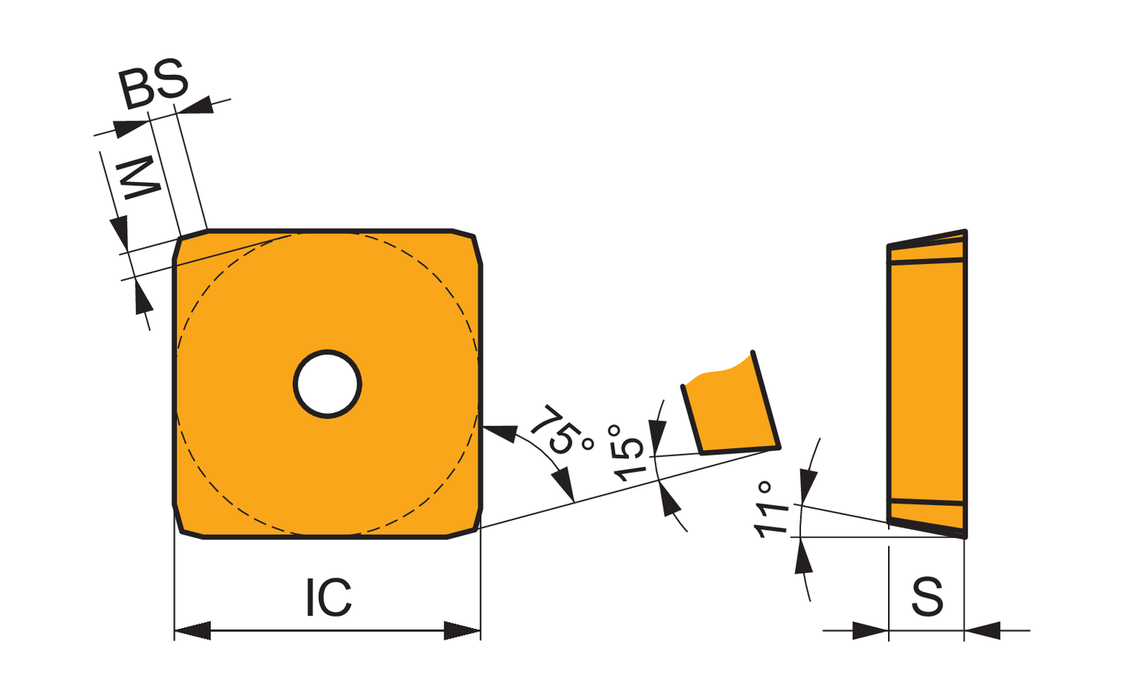

Single-sided milling insert SPKN 1203 with a plane rake surface, square for right hand cutting with a maximum depth of cut of .3543", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$14.79
-
Original price
$14.79
Original price
$14.79
$14.79
-
$14.79
Current price
$14.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Max. Depth of Cut: 0.354
Insert Design: SPKN
Insert Shape Code: S - square
Insert Thickness: 0.125
Inscribed Circle Diameter: 0.5
Chip Breaker: No chipbreaker
Grade: M9325
EDP: 6754578
EAN: 3603602899446
MFG Part Number: 6754578
