SEET 12T3M-PM:M9340

SEET 12T3M-PM:M9340

SKU DOR6754599
by Dormer Pramet
Primary Use: Possible Use:

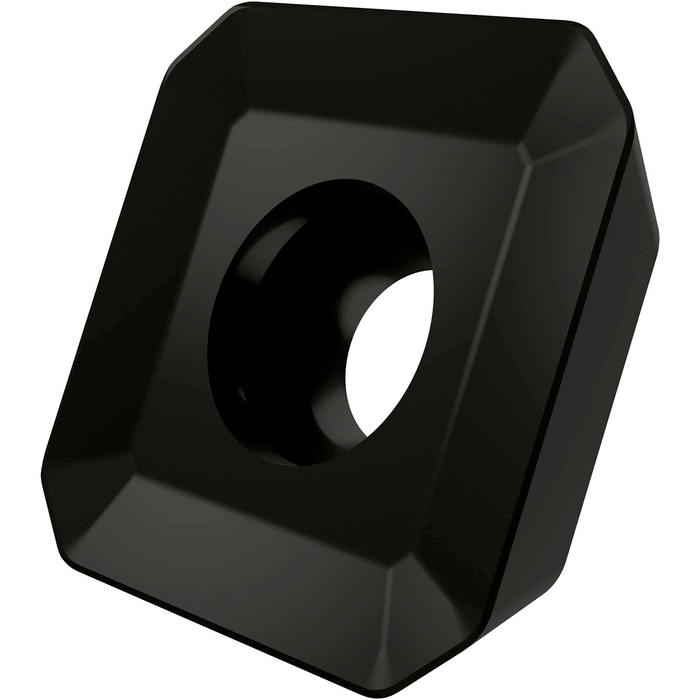

Single-sided milling insert SEET 12T3 with chip-breakers, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-E and PM geometry with rounded cutting edges and double facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$23.66 - $23.66
$23.66
$23.66 - $23.66
$23.66
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

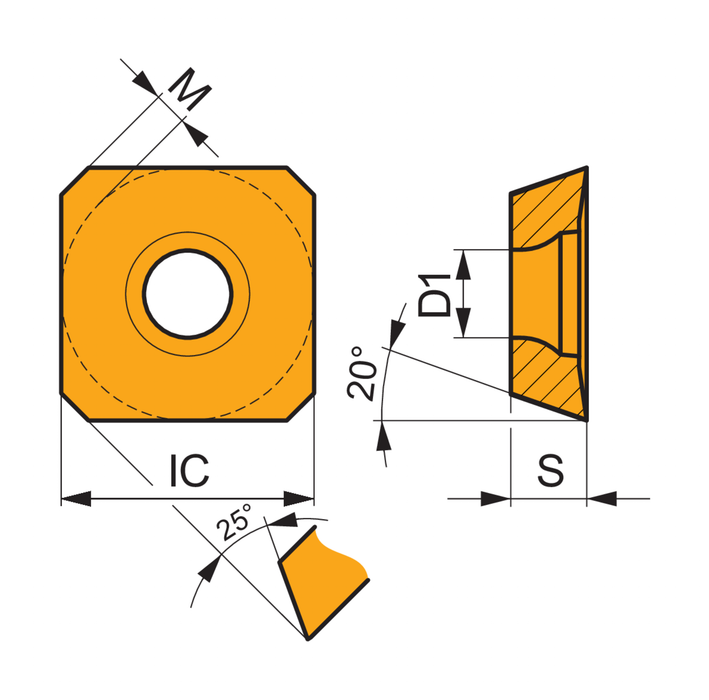

Max. Depth of Cut: 0.256

Insert Design: SEET

Insert Shape Code: S - square

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.528

Chip Breaker: PM

Grade: M9340

EDP: 6754599

EAN: 3603602899651

MFG Part Number: 6754599
