SPKN 53EDSR:M9315
SKU DOR6754619
Possible Use:
Single-sided milling insert SPKN 1504 with a plane rake surface, square for right hand cutting with a maximum depth of cut of .5118", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$22.93
-
Original price
$22.93
Original price
$22.93
$22.93
-
$22.93
Current price
$22.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

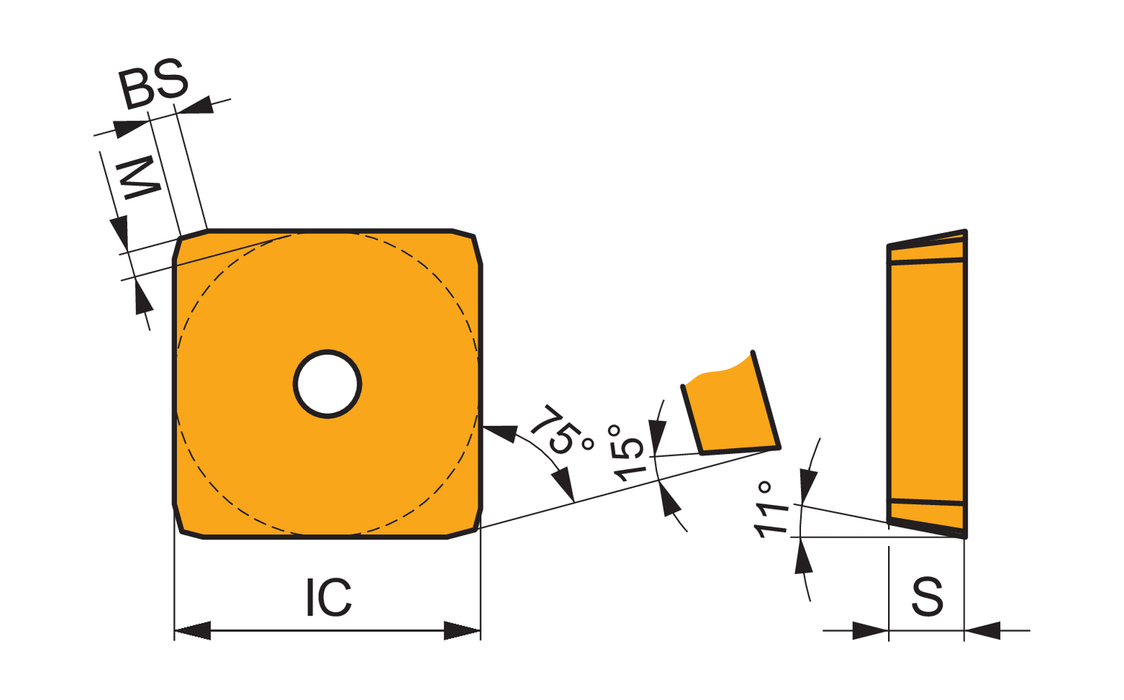

Max. Depth of Cut: 0.512
Insert Design: SPKN
Insert Shape Code: S - square
Insert Thickness: 0.187
Inscribed Circle Diameter: 0.625
Chip Breaker: No chipbreaker
Grade: M9315
EDP: 6754619
EAN: 3603602899859
MFG Part Number: 6754619
