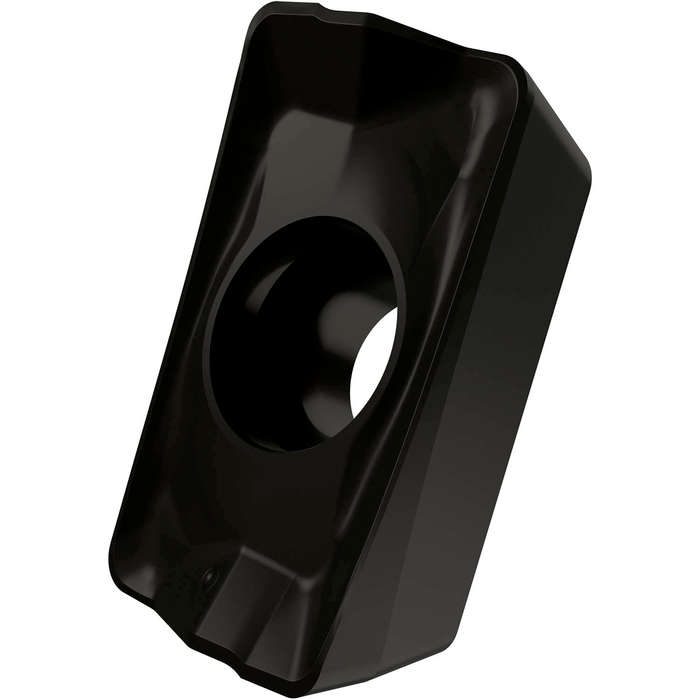

APKT 1604PDR-HM:M5315

APKT 1604PDR-HM:M5315

SKU DOR6754625
by Dormer Pramet
Primary Use: Possible Use:

Single-sided milling insert APKT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and HM geometry, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with shoulder mills SAP16D

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.89 - $16.89
$16.89
$16.89 - $16.89
$16.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

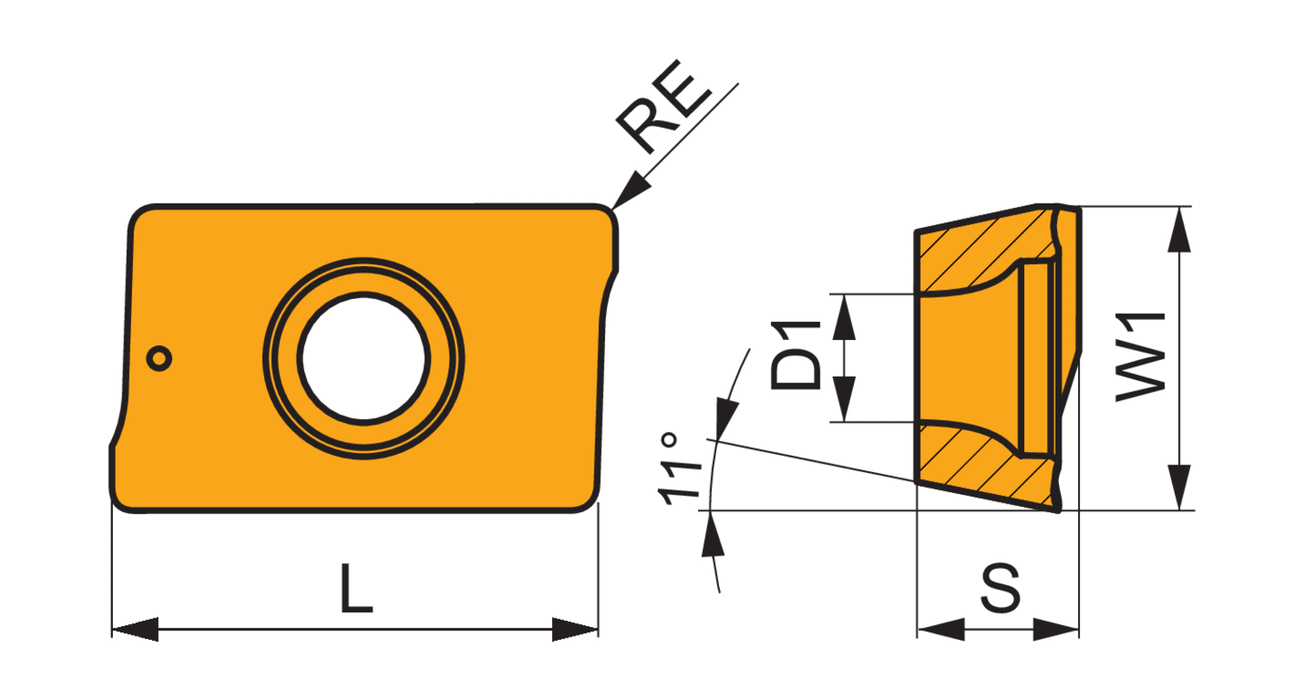

Max. Depth of Cut: 0.512

Insert Design: APKT

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.223

Chip Breaker: HM

Grade: M5315

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6754625

EAN: 3603602899910

MFG Part Number: 6754625
