SNMT 1205AZSR-R:M5315
SKU DOR6754628
Possible Use:

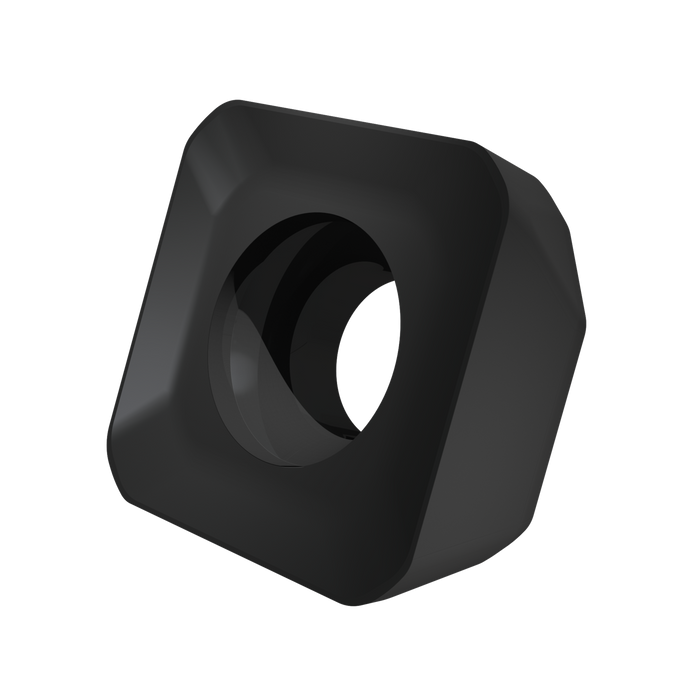

Single-sided milling insert SNMT 1205 with chip-breakers, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide for machining with face mills SSN12Z
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$28.63
-
Original price
$28.63
Original price
$28.63
$28.63
-
$28.63
Current price
$28.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

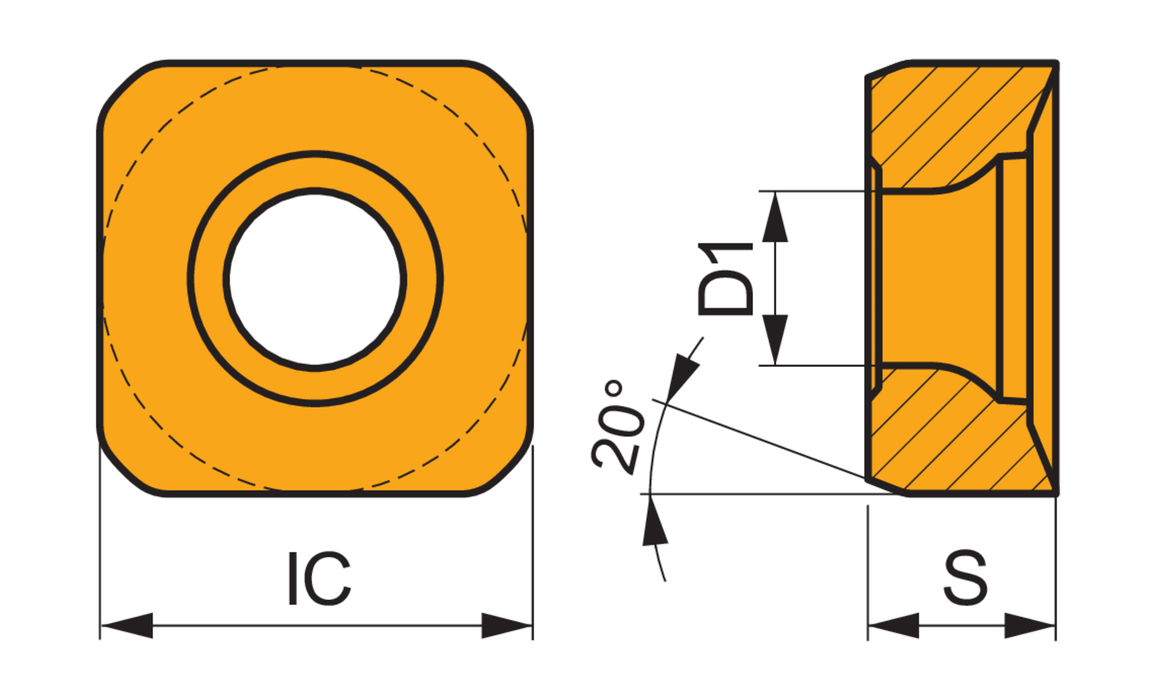

Max. Depth of Cut: 0.256
Insert Design: SNMT
Insert Shape Code: S - square
Insert Thickness: 0.219
Inscribed Circle Diameter: 0.5
Chip Breaker: R
Grade: M5315
EDP: 6754628
EAN: 3603602899941
MFG Part Number: 6754628
