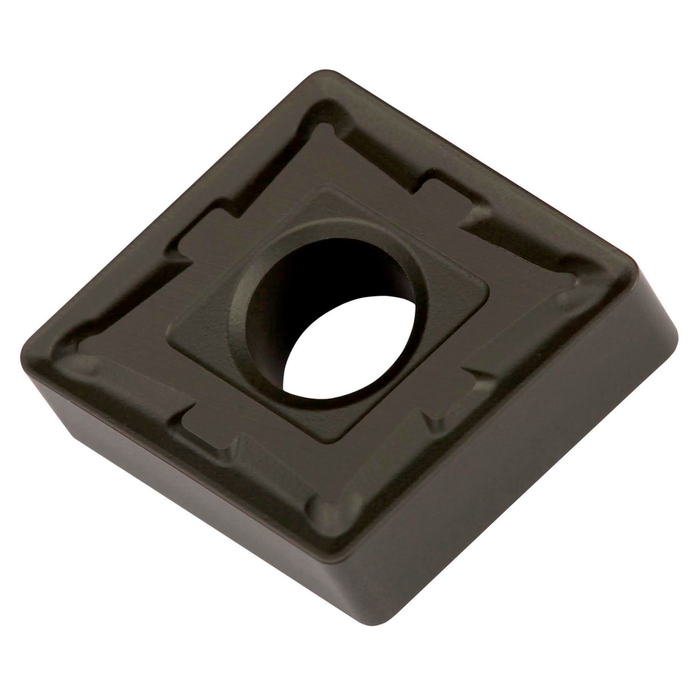

CNMG 544-M:T9335

CNMG 544-M:T9335

SKU DOR6754868
by Dormer Pramet
Primary Use:

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 5/8", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$19.61 - $19.61
$19.61
$19.61 - $19.61
$19.61
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.276

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Shape Code: gid://shopify/Metaobject/130432860222

Insert Thickness: 0.25

Steel and Cast Steel: Primary use

Inscribed Circle Diameter: 0.625

Chip Breaker: M

Grade: T9335

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6754868

EAN: 3603602902344

MFG Part Number: 6754868
