DNMG 433-RM:T9335

DNMG 433-RM:T9335

SKU DOR6754903
by Dormer Pramet
Primary Use: Possible Use:

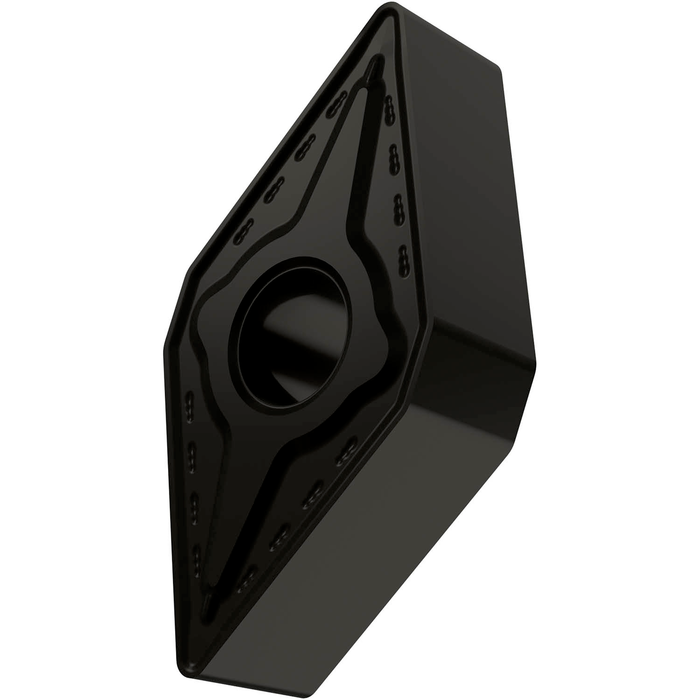

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20 - P45 and M15 - M40, for medium to heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$18.14 - $18.14
$18.14
$18.14 - $18.14
$18.14
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.177

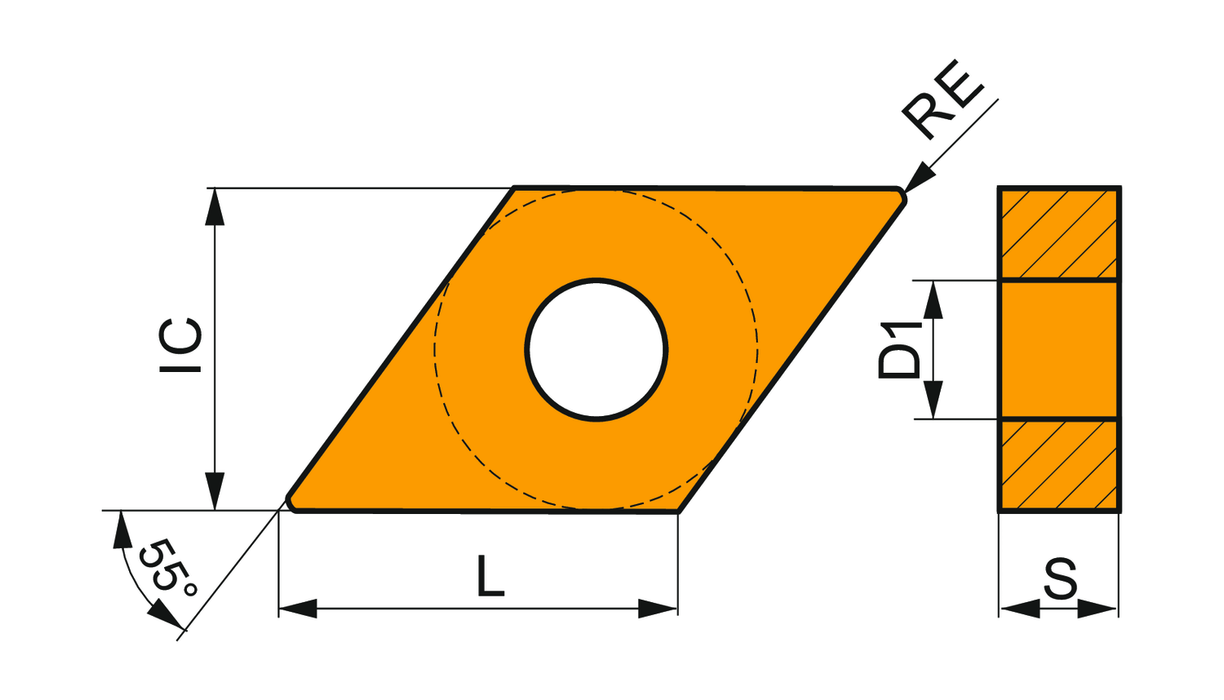

Insert Design: DNMG

Insert Shape Code: D - rhombic 55° included angle

Insert Shape Code: gid://shopify/Metaobject/130432892990

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: RM

Grade: T9335

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6754903

EAN: 3603602902696

MFG Part Number: 6754903
