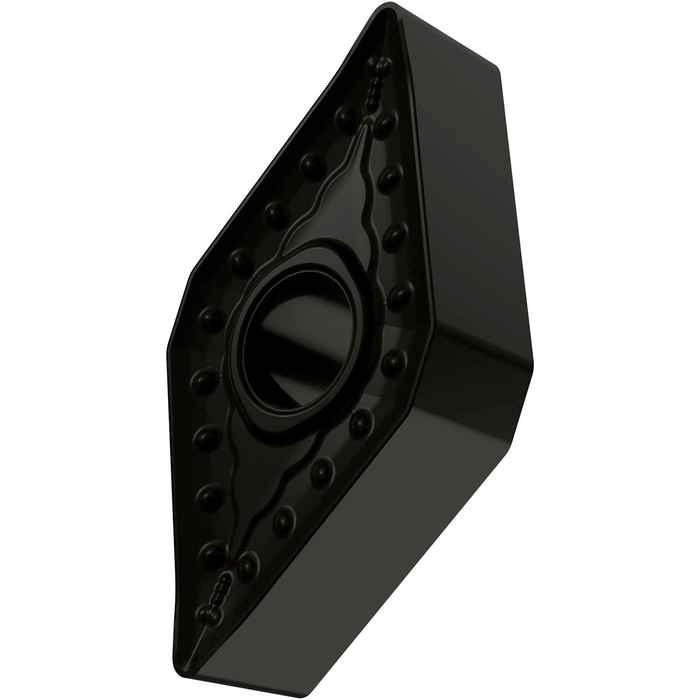

DNMM 443-OR:T9335

DNMM 443-OR:T9335

SKU DOR6754911
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker OR, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20 - P45, for medium to extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.29 - $22.29
$22.29
$22.29 - $22.29
$22.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

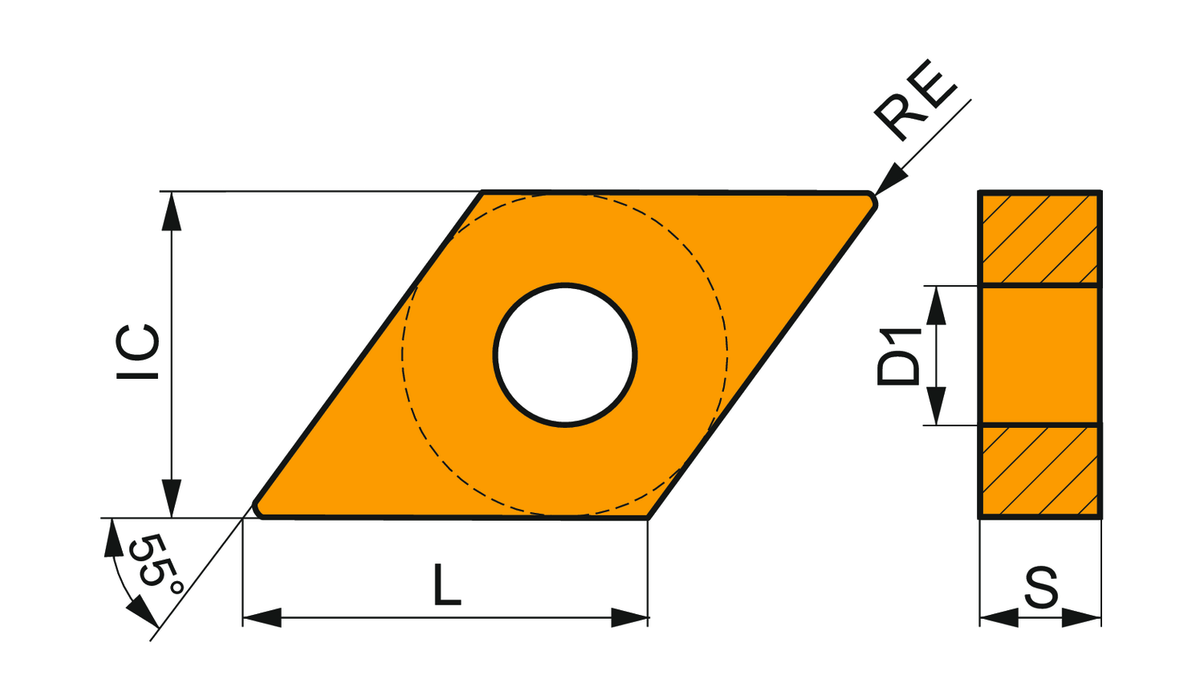

Max. Depth of Cut: 0.177

Insert Design: DNMM

Insert Shape Code: D - rhombic 55° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.5

Chip Breaker: OR_

Grade: T9335

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6754911

EAN: 3603602902771

MFG Part Number: 6754911
