SNMX 251224S-SR:T9335

SNMX 251224S-SR:T9335

SKU DOR6754972
by Dormer Pramet
Primary Use: Possible Use:

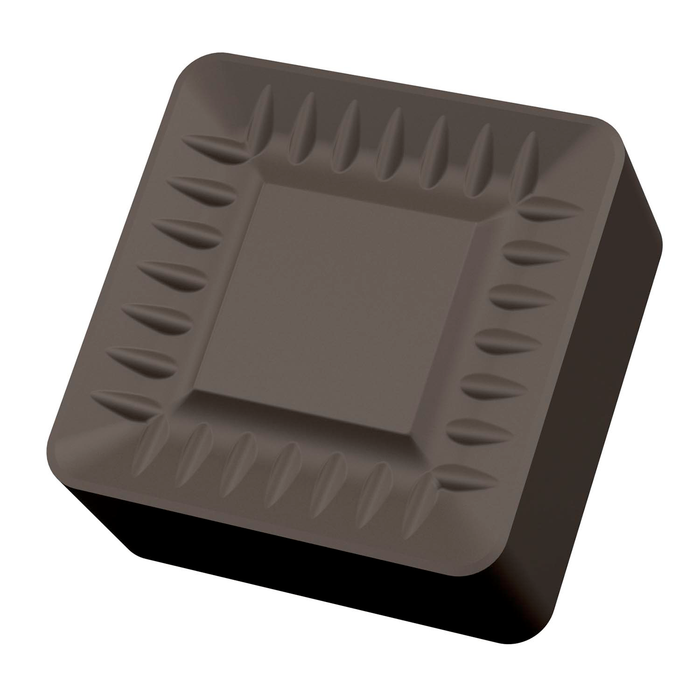

Special design negative turning insert, square with inscribed circle diameter of 25.4mm, 12mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SR with rounded cutting edges with facet, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for heavy to extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$73.57 - $73.57
$73.57
$73.57 - $73.57
$73.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

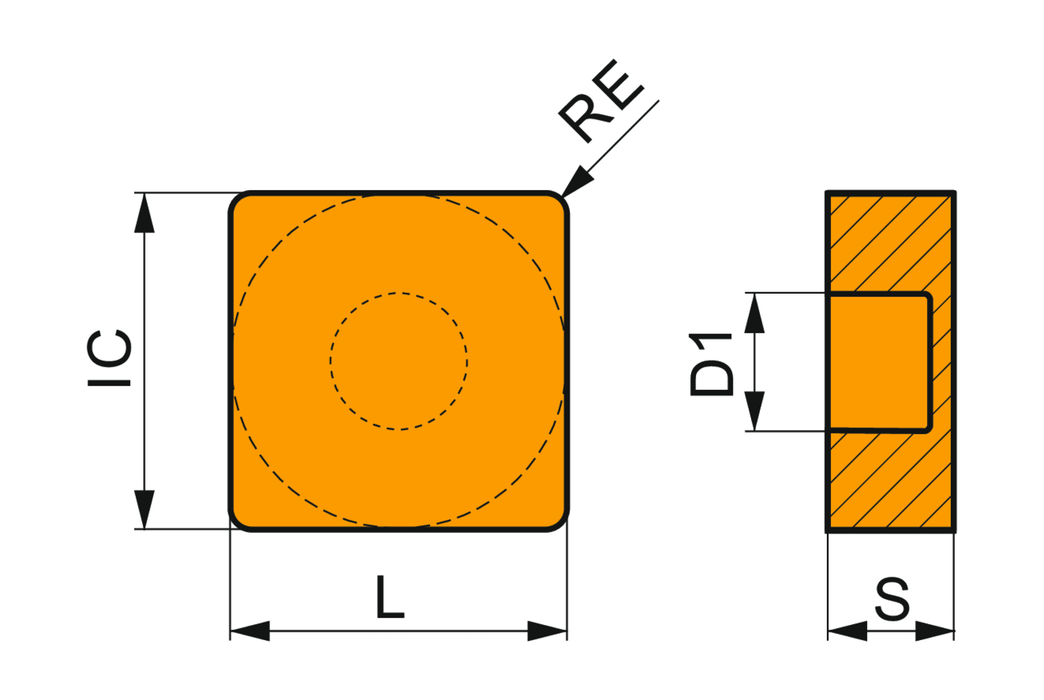

Max. Depth of Cut: 0.63

Insert Design: SNMX

Insert Shape Code: S - square

Insert Thickness: 0.472

Inscribed Circle Diameter: 1.0

Chip Breaker: SR

Grade: T9335

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 6754972

EAN: 3603602903389

MFG Part Number: 6754972
