TNMM 433L:T9335

TNMM 433L:T9335

SKU DOR6754994
by Dormer Pramet
Primary Use: Possible Use:

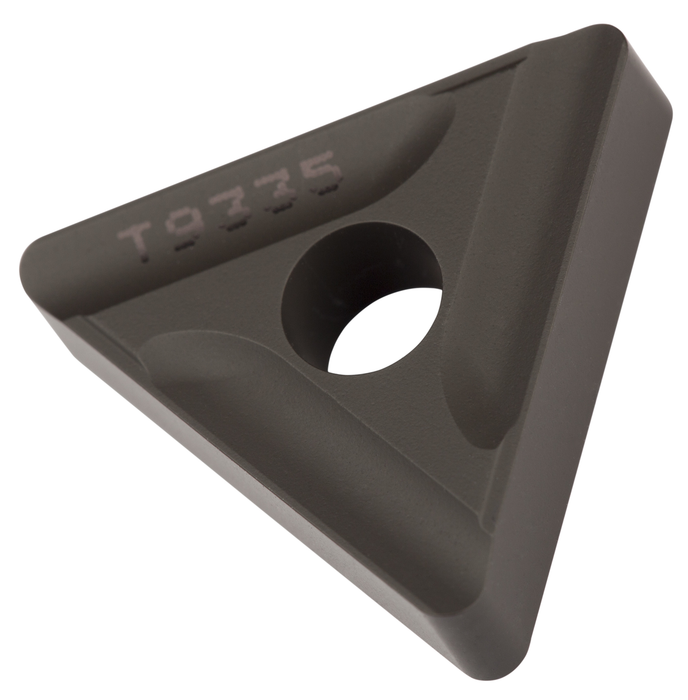

Double-sided negative turning insert, triangular with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20 - P45 and M15 - M40, for medium to heavy machining of steels and stainless-steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.61 - $15.61
$15.61
$15.61 - $15.61
$15.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

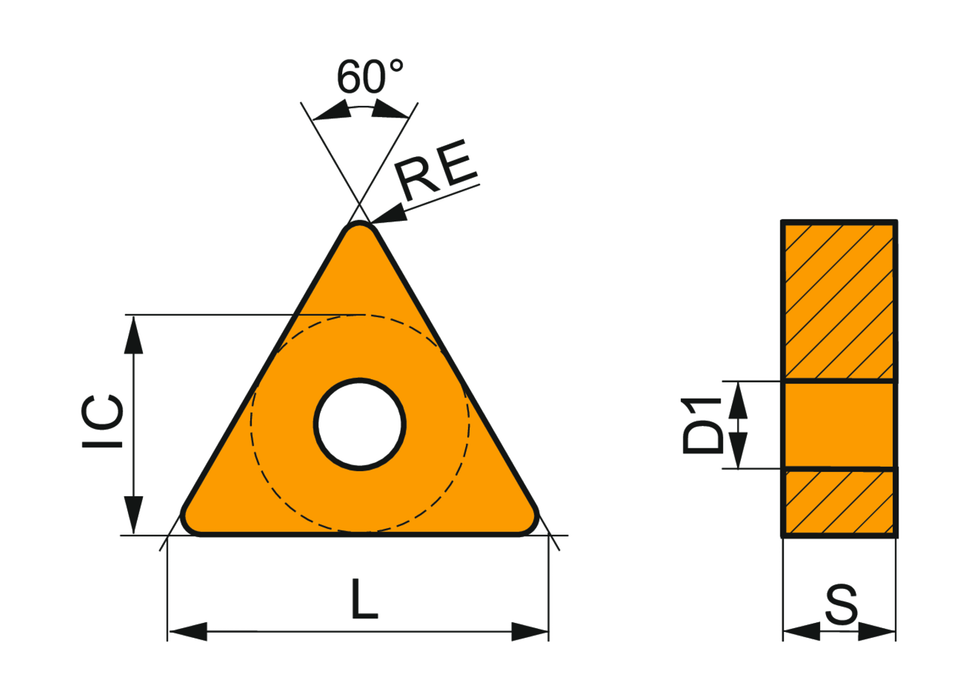

Max. Depth of Cut: 0.197

Insert Design: TNMM

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: No chipbreaker

Grade: T9335

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6754994

EAN: 3603602903600

MFG Part Number: 6754994
