TPMR 323-47:T9335

TPMR 323-47:T9335

SKU DOR6755007
by Dormer Pramet
Primary Use: Possible Use:

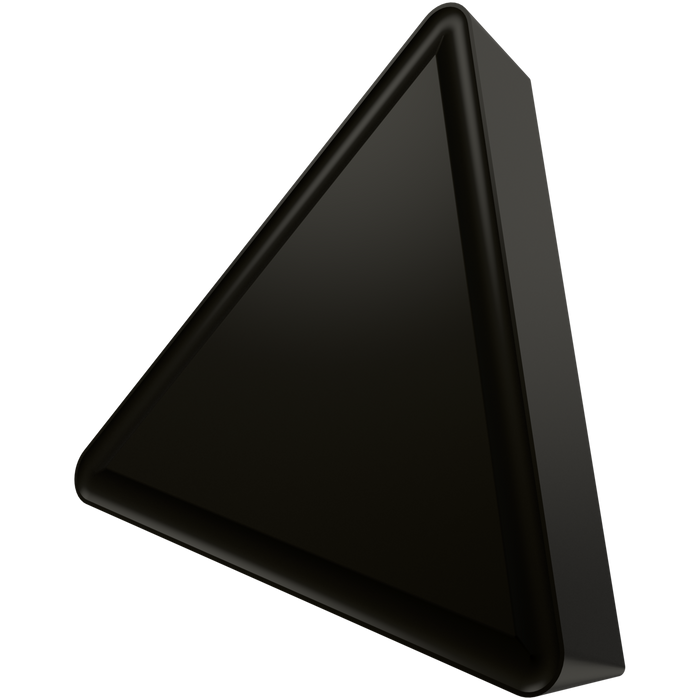

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 3/8", 1/8" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 47, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.54 - $14.54
$14.54
$14.54 - $14.54
$14.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

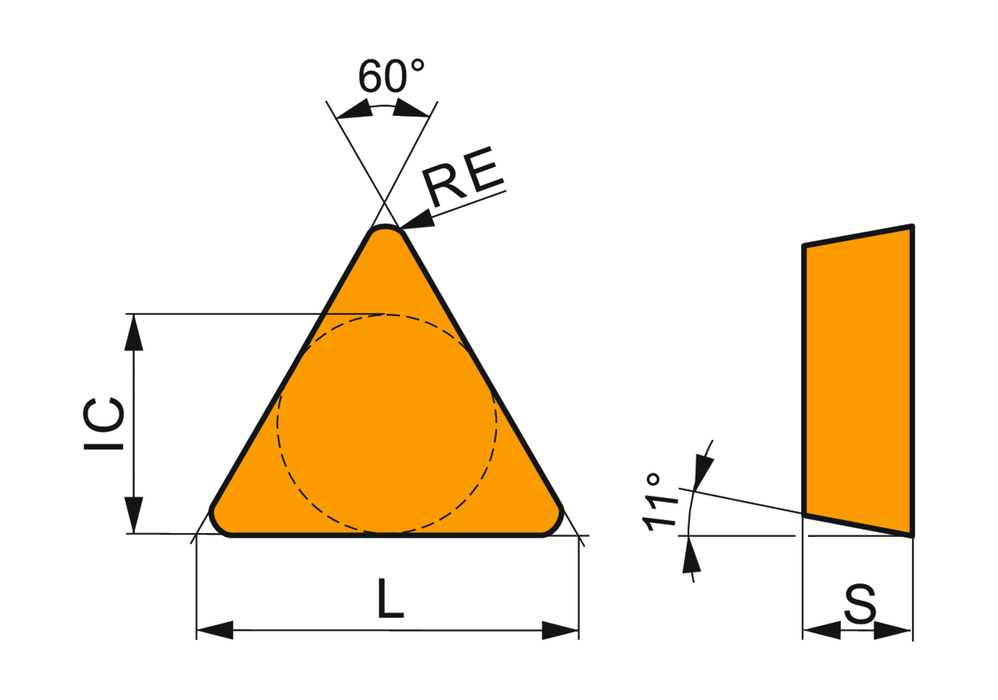

Max. Depth of Cut: 0.157

Insert Design: TPMR

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: 47

Grade: T9335

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6755007

EAN: 3603602903730

MFG Part Number: 6755007
