CNMG 542-M:T9310

CNMG 542-M:T9310

SKU DOR6755033
by Dormer Pramet
Primary Use: Possible Use:

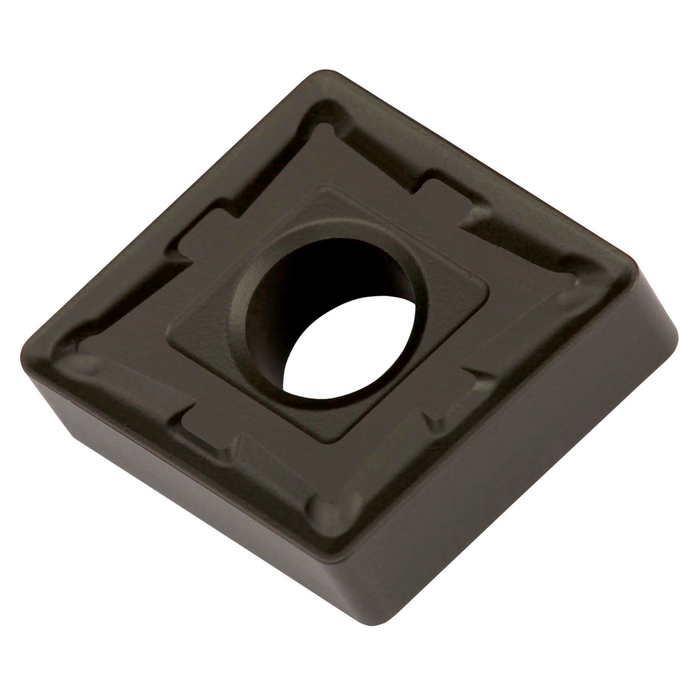

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 5/8", 1/4" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01-P15, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.29 - $22.29
$22.29
$22.29 - $22.29
$22.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.276

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.625

Chip Breaker: M

Grade: T9310

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6755033

EAN: 3603602903990

MFG Part Number: 6755033
