RCGX 090700 K15015:TC100
SKU DOR6755436
Primary Use:
Single-sided turning insert, round 7° clearance, a diameter of 9.525mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-G, cutting edges with double facet T-land -15°/1.5mm, in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$52.40
-
Original price
$52.40
Original price
$52.40
$52.40
-
$52.40
Current price
$52.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

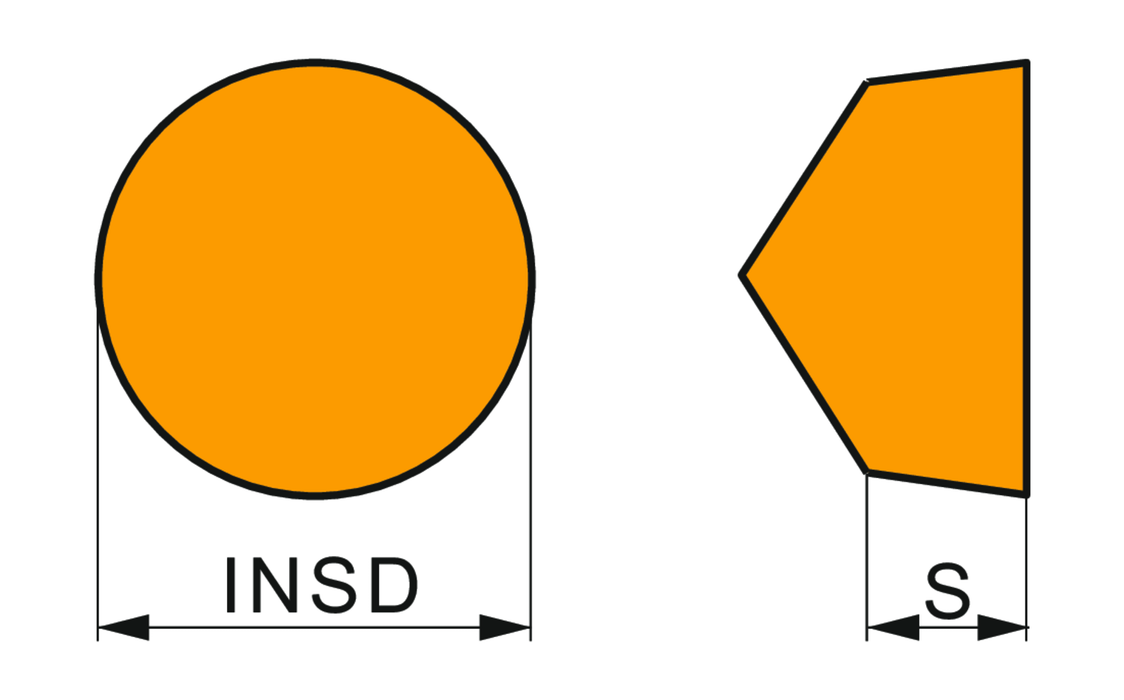

Max. Depth of Cut: 0.102
Insert Design: RCGX
Insert Shape Code: R - round
Insert Thickness: 0.313
Chip Breaker: No chipbreaker
Grade: TC100
EDP: 6755436
EAN: 3603602908025
MFG Part Number: 6755436
