SNG 431 T00420:TC100

SNG 431 T00420:TC100

SKU DOR6755440
by Dormer Pramet
Primary Use:

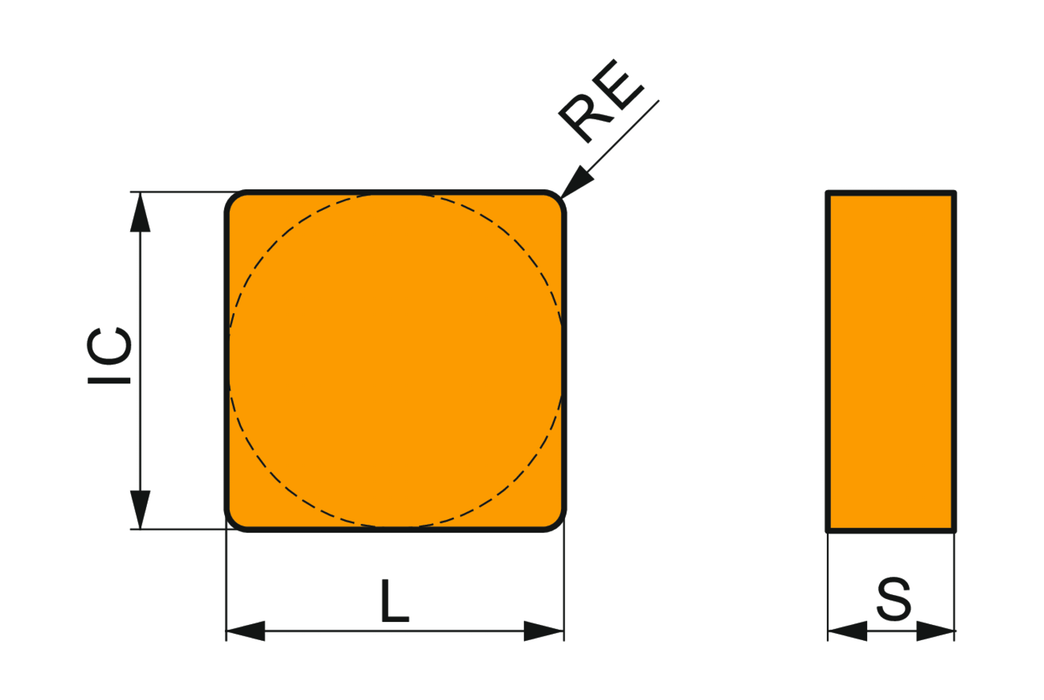

Double-sided turning insert, square, plain with inscribed circle diameter of 1/2", 3/16" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class-G, cutting edges with facet T-land -20°/0.004", in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$26.66 - $26.66
$26.66
$26.66 - $26.66
$26.66
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.236

Insert Design: SNGN

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: No chipbreaker

Grade: TC100

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6755440

EAN: 3603602908063

MFG Part Number: 6755440
