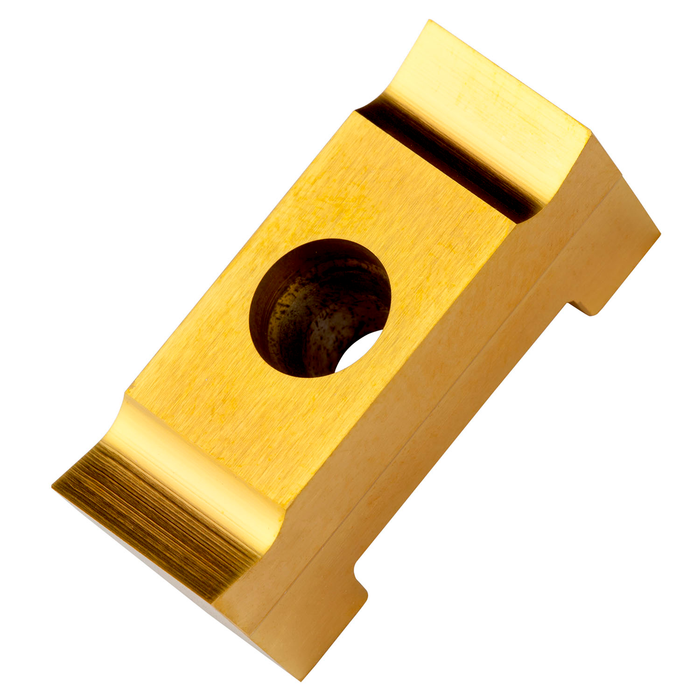

HZ/2 14-14 H7:333TN
SKU DOR6755460
Primary Use:
Possible Use:
Double ended keyway and slotting insert for broaching a width of 14mm within tolerance class H7, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-14 size broach
Inventory
Sold in packs of: 2
For more information about this product,
click here
Original price
$287.14
-
Original price
$287.14
Original price
$287.14
$287.14
-
$287.14
Current price
$287.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

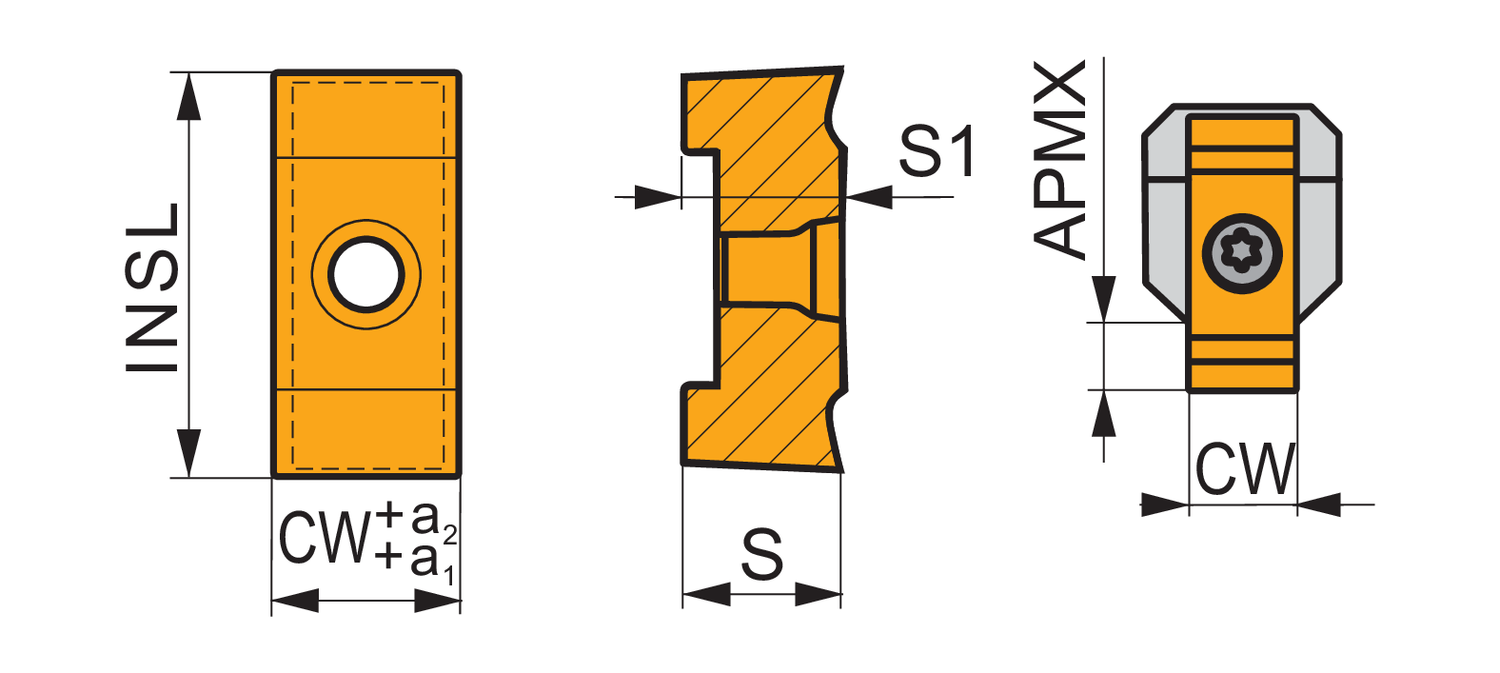

Max. Depth of Cut: 0.315
Insert Design: HZ-2
Insert Shape Code: H - hexagonal
Insert Thickness: 0.547
Chip Breaker: No chipbreaker
Grade: 333TN
EDP: 6755460
EAN: 3603602908261
MFG Part Number: 6755460
