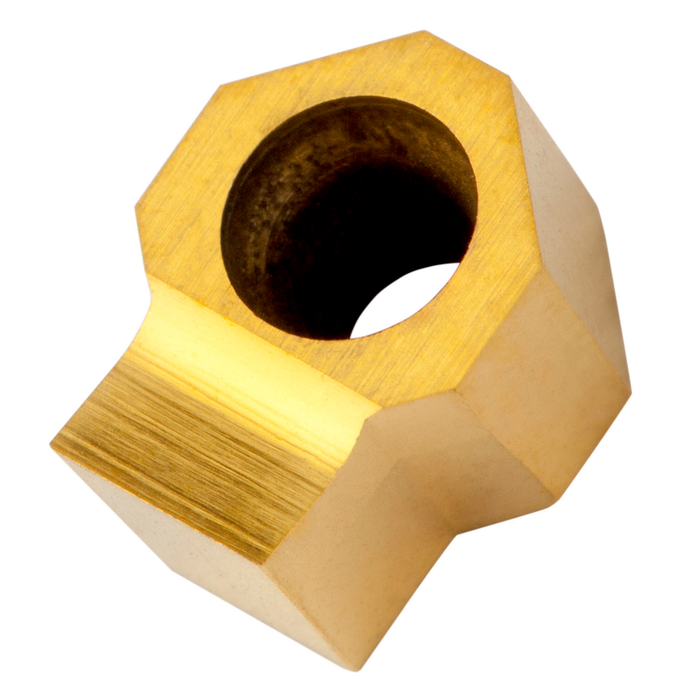

HZ90 0604-40 D10:333TN
SKU DOR6755485
Primary Use:
Possible Use:
Single ended keyway and slotting insert for broaching a width of 4mm within tolerance class D10, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-06 size broach
Inventory
Sold in packs of: 2
For more information about this product,
click here
Original price
$69.33
-
Original price
$69.33
Original price
$69.33
$69.33
-
$69.33
Current price
$69.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

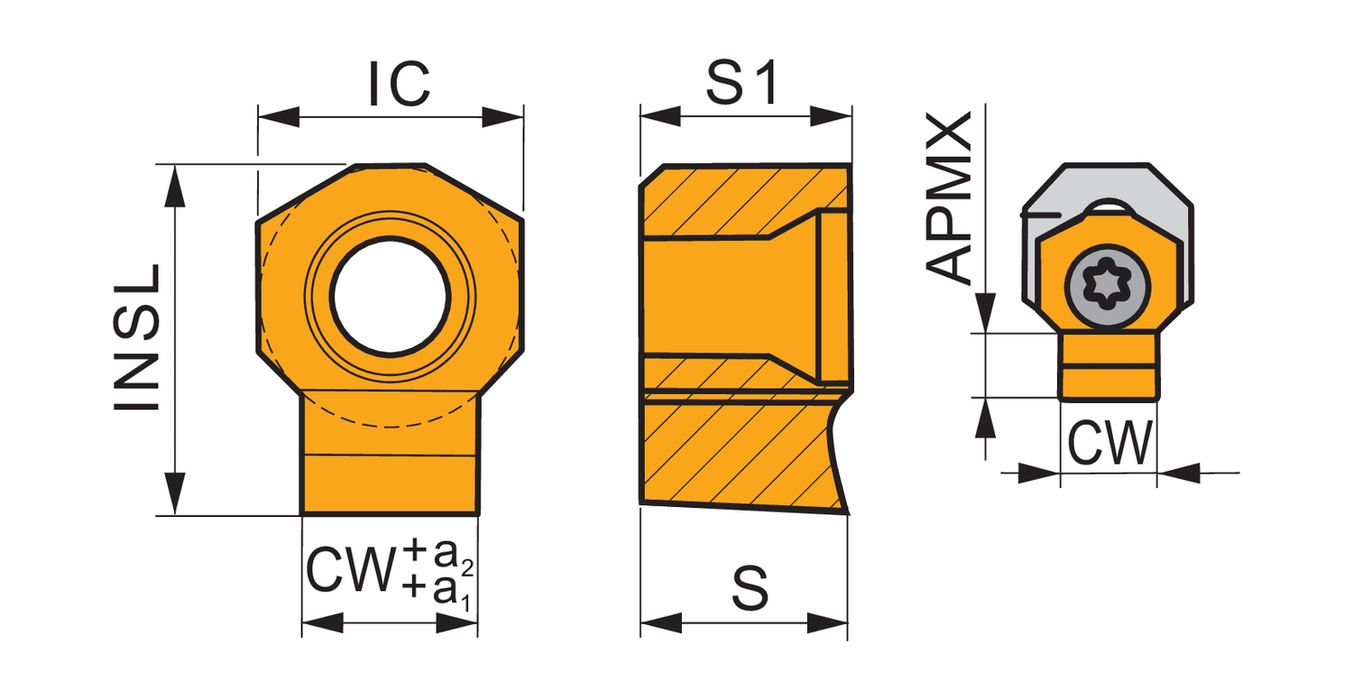

Max. Depth of Cut: 0.098
Insert Design: HZ
Insert Shape Code: H - hexagonal
Insert Thickness: 0.183
Inscribed Circle Diameter: 0.236
Chip Breaker: No chipbreaker
Grade: 333TN
EDP: 6755485
EAN: 3603602908513
MFG Part Number: 6755485
