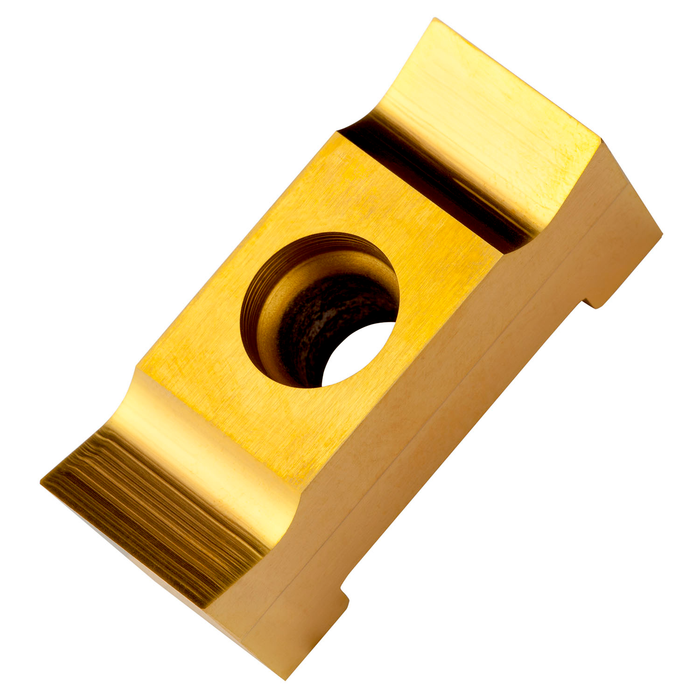

HZ/2 18-18 C11:333TN
SKU DOR6755487
Primary Use:
Possible Use:
Double ended keyway and slotting insert for broaching a width of 18mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-18 size broach
Inventory
Sold in packs of: 2
For more information about this product,
click here
Original price
$349.29
-
Original price
$349.29
Original price
$349.29
$349.29
-
$349.29
Current price
$349.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

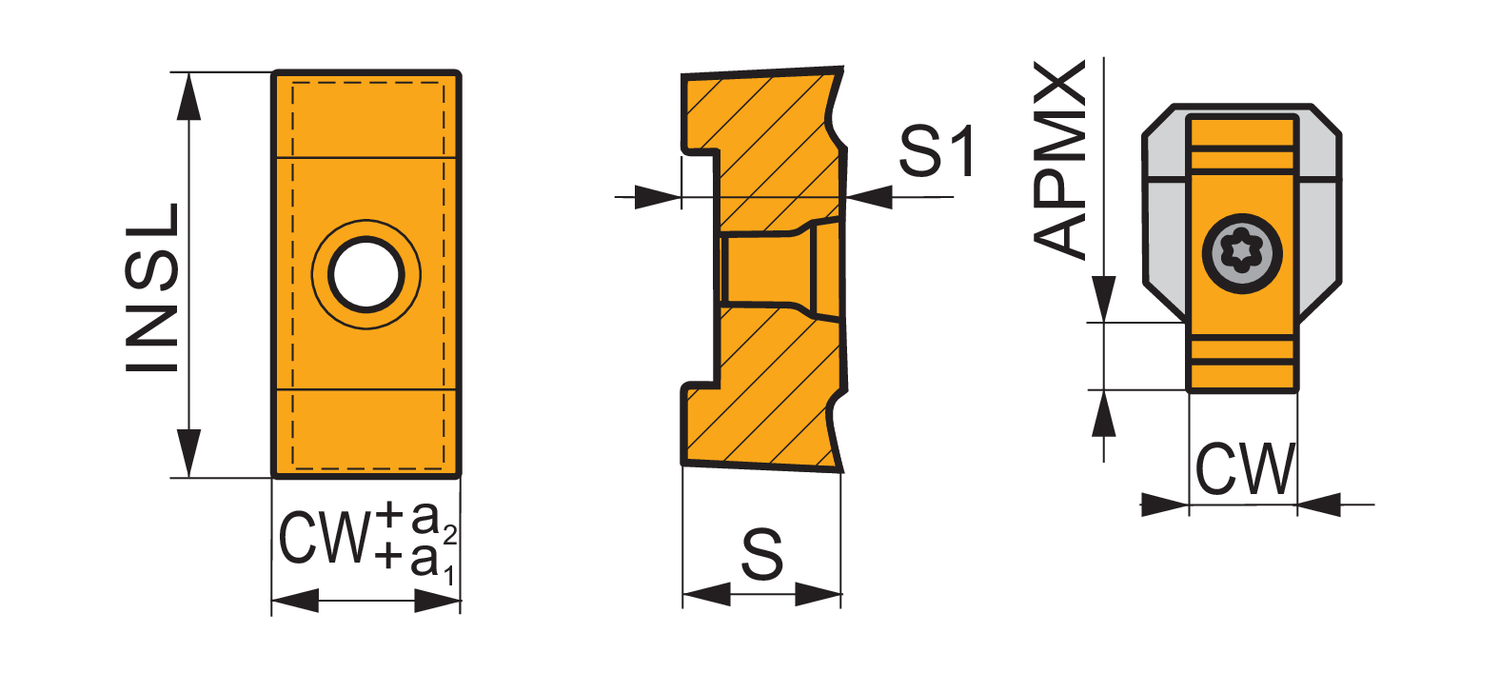

Max. Depth of Cut: 0.472
Insert Design: HZ-2
Insert Shape Code: H - hexagonal
Insert Thickness: 0.626
Chip Breaker: No chipbreaker
Grade: 333TN
EDP: 6755487
EAN: 3603602908537
MFG Part Number: 6755487
