VCMT 331-UR:T9325

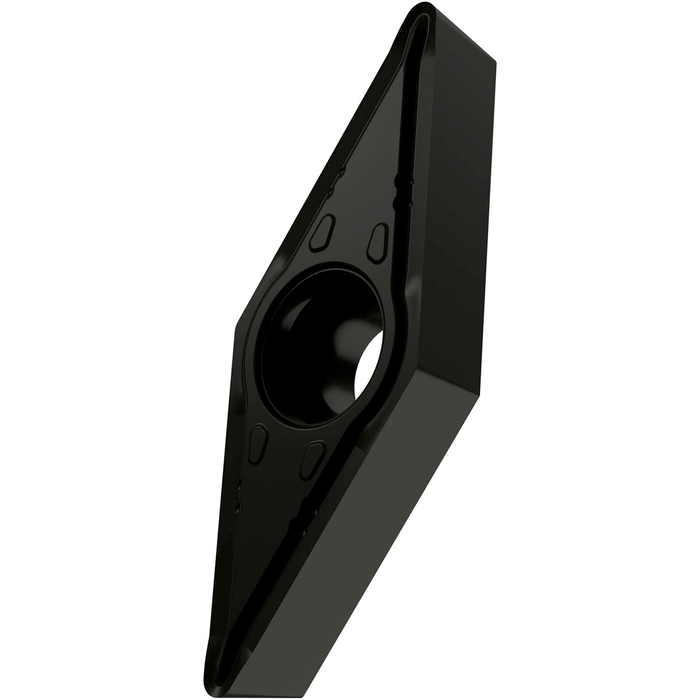

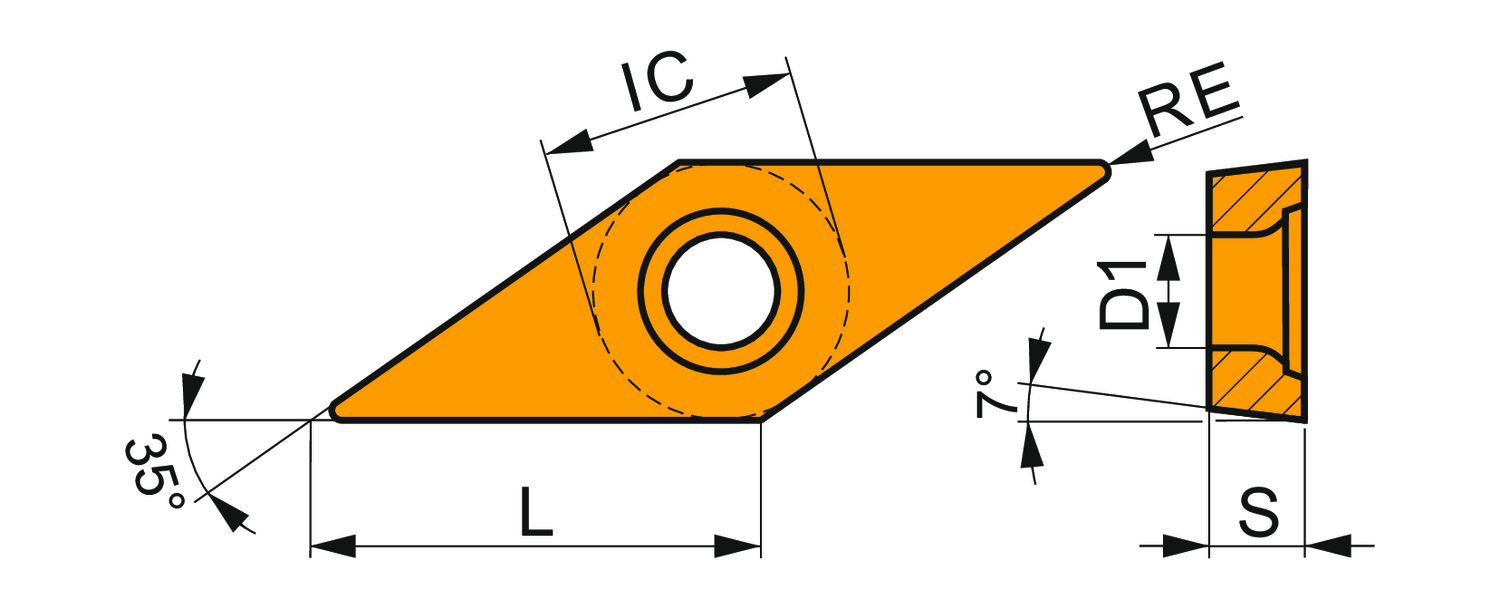

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for fine to heavy machining of steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.375
Coating: T9325
Chip Breaker: UR
Insert Design: VCMT
Corner Radius (IN): 0.016
