VCMT 222-UR:T9325

VCMT 222-UR:T9325

SKU DOR6755625
by Dormer Pramet
Primary Use: Possible Use:

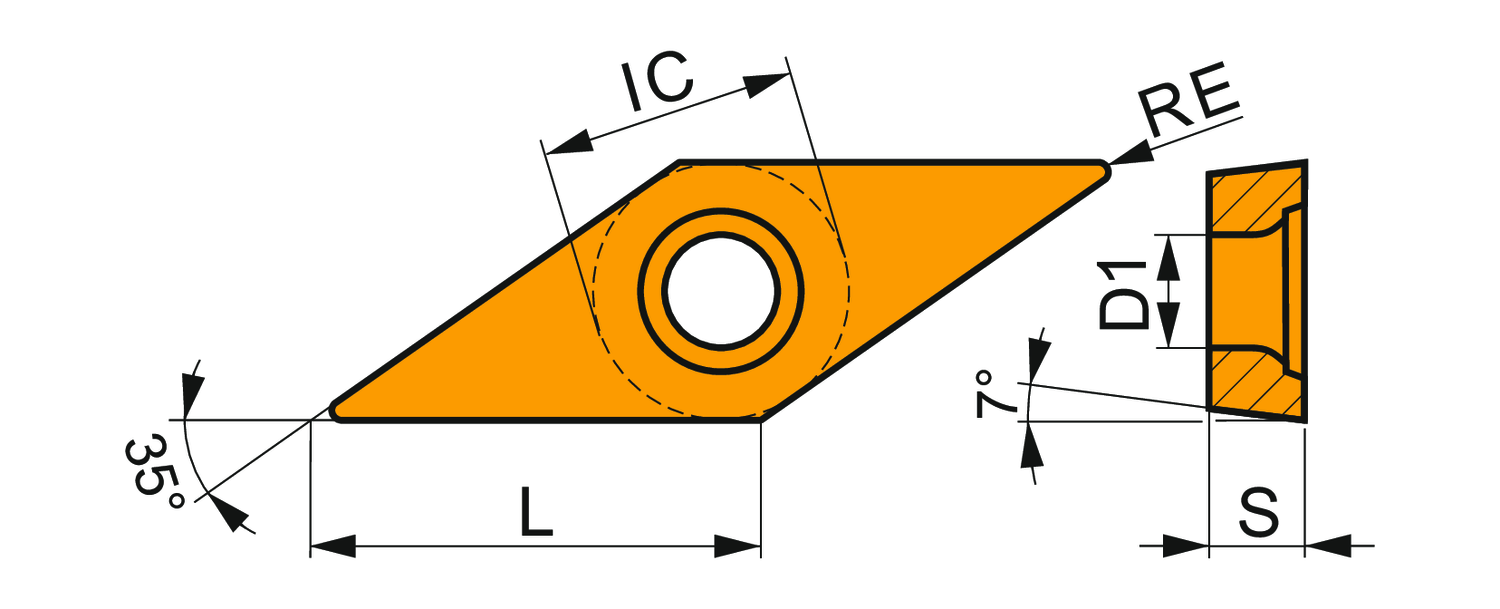

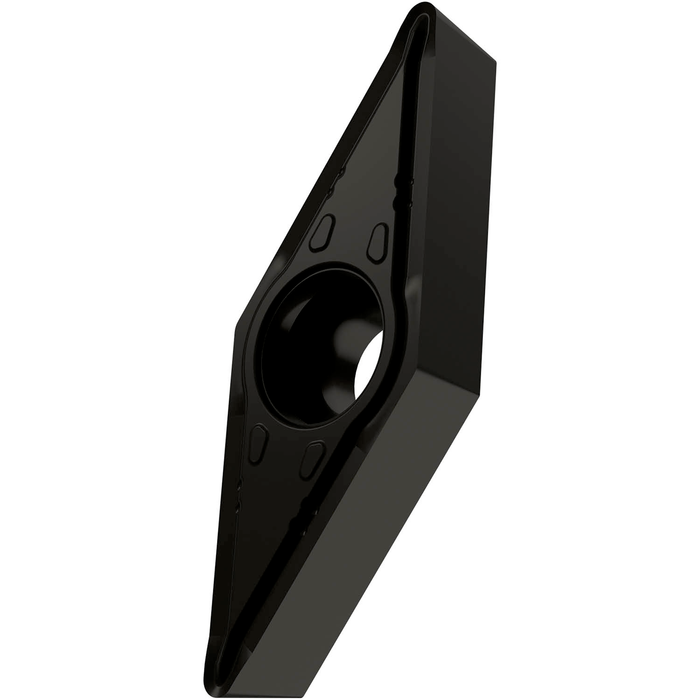

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.04 - $17.04
$17.04
$17.04 - $17.04
$17.04
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.079

Insert Design: VCMT

Insert Shape Code: V - rhombic 35° included angle

Insert Shape Code: gid://shopify/Metaobject/145756749886

Insert Thickness: 0.125

Steel and Cast Steel: Primary use

Stainless Steel: Possible use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.25

Chip Breaker: UR

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6755625

EAN: 3603602909916

MFG Part Number: 6755625
