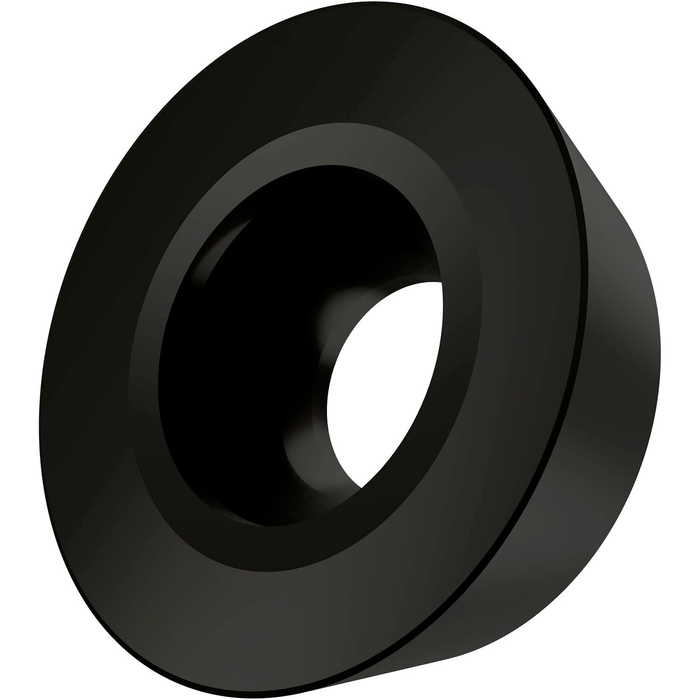

RDGT 1003MOT:M9340

RDGT 1003MOT:M9340

SKU DOR6755646
by Dormer Pramet
Primary Use: Possible Use:

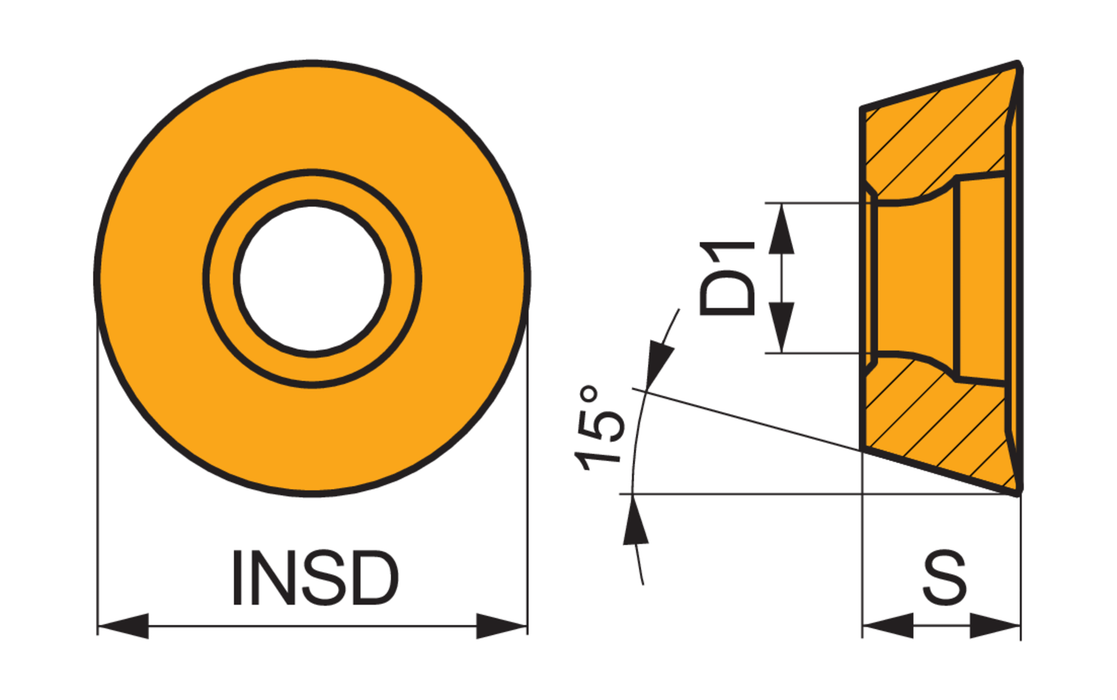

Single-sided milling insert RDGT 1003 with chip-breakers, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with copy face mills SRD10

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.14 - $17.14
$17.14
$17.14 - $17.14
$17.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.098

Insert Design: RDGT

Insert Shape Code: R - round

Insert Thickness: 0.125

Chip Breaker: With chipbreaker -no designation

Grade: M9340

EDP: 6755646

EAN: 3603602910127

MFG Part Number: 6755646
